Step by Step to 'Pattern-12A'

  1. The pattern project of pattern ‚Pattern-12‘ is open.
    1
    Select ‚Muster_Pattern_12 in the tool window.
    2
    Open the context menu with RMB and select Duplicar amostra... .
  1. The Duplicar amostra com corte -xxx dialog box appears.
    2. 3
    Rename the pattern.
    4
    Activate Selection Deseja também gerar cópias dos cortes?.
  2. The pending shape of ‚Patten-12‘ will be duplicated as well.
    3. 5
    Rename the shape if necessary.
    6
    Close the dialog box with the OK button.
    7
    Select the Cortes tab.
    8
    Select the duplicate of the shape.
    9
    Open the shape by double-clicking.
    10
    In the Tabela de linhas tool window, position the cursor in the area beside the Corte base button, open the context menu with RMB and call-up Adicionar novo elemento de corte....
    - or -
    Position the cursor in the document window (graphic), open the context menu with the RMB and select Adicionar novo elemento de corte....
    11
    Select Assimétrico in the Spickel selection menu.
    12

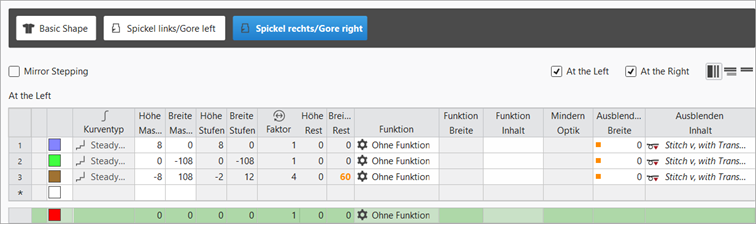

    Open the line table of the new shape element and enter the desired values.
  3. The newly created shape element is displayed in the graphic and in the line table as well.

Shape Element Type: Gore asymmetrical

: Table for the Spickel shape element contains values for Esquerda!
However, the shape element is placed on the 'right' side of the fabric piece.

    13
    Select Spickel shape element.
    14
    Open the context menu with RMB and select Inverter verticalmente.
    15
    Then open the context menu again -> select Duplicar invertido.
  1. New knitting element is saved and is displayed in the basic shape.
    2. 16
    To position a Spickel shape element, open the input window by double click and enter the coordinates.
    - or –
    Place the shape element at the desired position with the LMB pressed.
    17
    Position both Spickel shape elements below the collar.
    : When positioning, pay attention to the knitting technique (carriage direction)!
    18
    Click the Início button under Pré-visualização in the Guia-fios ribbon.
  2. The New Pattern xx document window is opened as view and the Guia-fios ribbon appears.
    3. 19
    Open the dialog box via Exibir guia-fios.
    20
    If necessary, make the desired settings for allocating yarn carriers.
    21
    Start the Processamento técnico:
    Show symbol view after technical processing.
    22
    Generate Sintral.
    23
    Start the Controle Sintral.
    24
    Extrair the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-12.zip.
  2. Load knitting program into the machine.

: The extracted file CMS530.Pattern-12A.zip can be loaded onto the machine with an USB stick or via Ethernet.
