Import Image

I. Import Image:

1: Start the program double-clicking .

2: Click Resmi al in the start page under Start.
- or -
In the started CREATE PLUS, in the Dosya ribbon, İçe aktar tab, select Resmi al.

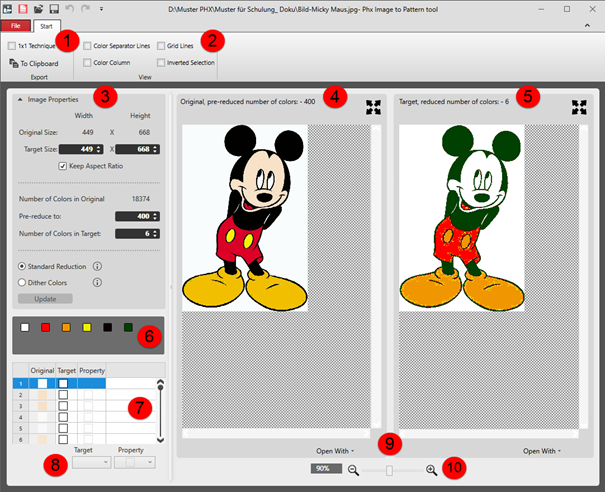

The Image import dialog box appears.

3: Select and open the path of the desired image via Aç in the Dosya ribbon of the Image Import dialog box.
: The following formats can be read: bmp, jpg, jpeg, jpe, jfif, gif, tiff, tif, png

In the dialog box, the Orijinal and the Hedef is displayed with a pre-set color reduction.


Start ribbon
1	Ribbon Group Ver
		1x1 teknik	The image will be doubled in the width (1x1 technique). : Attention Observe the knitting technique of the pattern! Tüm iğneler 1x1 teknik This affects the insertion of the image!
		Panoya	The edited image is copied to the clipboard. : In the CPS, the image can be inserted in the Desen Parçaları tool window under Pattern Elements.
		Desen proje oluştur	Create a pattern project with a pattern based on the edited image.
2	Ribbon Group Görünüm : The settings are displayed only in the Hedef, düşürülmüş renk sayısı: view.
		Renk ayırma çizgileri	Display of the Hedef, düşürülmüş renk sayısı: view of colored separating lines for subdividing the different areas with different quantity of colors
		Kılavuz çizgileri	Display of a grid in the Hedef, düşürülmüş renk sayısı: view
		Renk sütunu	Display of an additional column in the Hedef, düşürülmüş renk sayısı: view with the existing colors in each case.
		Ters seçim	Display of the selected color : Select the color only in the Orijinal or in the Hedef.
3	Resim özellikleri
	Orijinal boyut:		Display of the original size of the image in width x height
	Hedef boyut:		Edit boxes for the size of the target in width x height
		Kenar oranını uydur		Size of the image freely changeable in width and height.
				Size of the image changeable depending on the aspect ratio.
	Orijinaldeki renk sayısı		Original quantity of colors in the original image
	Öncesinde şuna düşür:		Entry of the quantity of colors to which the image is to be reduced when loading it. : This, already reduced image will be displayed as Orijinal.
	Hedefteki renk sayısı:		Entry of the quantity of colors for reducing the Orijinal to Hedef
	Standart düşürme		Type of reduction of an image, e.g. for Jacquard
	Renkler karıştırma (Dithering)		Type of reduction of an image with smooth color transitions, e.g. for photos
	Güncelleştir		Apply changes of the settings
4	Display of the original image with already previously reduced colors
5	Display of the Hedef image with the specified quantity of colors
6	Display of all colors in the target For selecting all the original colors of the table that correspond to the target color : Corresponds to the entry under Hedefteki renk sayısı: .
7	Table with the following columns
	Orijinal		Quantity of colors which were entered at Öncesinde şuna düşür:.
	Hedef		Allocation of a target color to a original color : Manual changing of the allocation via the selection menu at the corresponding target color.
	Sahiplik		Şekil dışında	Allocate 'outside shape' to one or more selected target colors. : When importing an image, e.g. as shape template
			Rengi kullan	One or more selected target colors are imported as color in the CPS. : When importing an image as Jacquard template
			Transparan	Allocate Transparan to one or more selected target colors. : When importing an image, which is to be positioned on a specific background.
8	Hedef		Selection of the target color for the allocation of a property
	Sahiplik		Selection of the desired property for the selected target color
9	Şununla aç		Open the original or the target in an image editing app to make changes
10	Yakınlaştır		Zoom in or out
