Save the image, copy it to the clipboard or create a project

: The target is saved in the STOLL Image Import type *.sii.

: A pattern element is created based on the target and copied to the clipboard.

I. Save image / Save as:

  1. The image is edited and the desired result is displayed.
    1
    Open the Resim alma işlemini farklı kaydet... dialog box.
    Dosya ribbon -> Kaydet -> Farklı Kaydet
    2
    Enter the desired path for saving.
    3
    Enter file name:
  1. The image is saved with the file name and in the (STOLL Image Import) format.
    2. 4
    Close the dialog box with X.
  1. The saved image can be opened again in the Resim al dialog.

II. Copy the image to the clipboard and open it in a new pattern project:

  1. The image is edited and the desired result is displayed.
    1
    Copy the image to the clipboard.
    Başlat ribbon -> Ver -> Panoya
  1. The image is located in the clipboard.
    2. 2
    Create a new project in the Quick Access toolbar of the Image import with the button.
    - or -
    start the CPS with double click on the and create a new pattern project with button.
  2. The Yeni desen proje dialog box appears.
    3. 3
    Make the desired settings.
    4
    Enter the appropriate width and height for inserting the image under Boyut.
    5
    Close the dialog box with OK.
  3. The new pattern project appears.
    4. 6
    Select the Desen parçası tab in the Örme elemanları tool window.
    7
    Position the cursor in the tool window.
    8
    Insert the image from the clipboard into the pattern project with Ctrl + V.
    9
    Select a pattern element and draw it in the pattern.

III. Create a new pattern project from the edited image.

  1. The image is edited and the desired result is displayed.
    1
    Create the new pattern project.
    Başlat ribbon -> Ver -> Desen proje oluştur
  1. The Yeni desen proje dialog box appears.
    2. 2
    Make the desired settings.
    3
    Close the dialog box with OK.
  2. The new pattern project appears with the image.

IV. Changing the colors of an image in the pattern project:

  1. A pattern project is created.
  2. The image has the format tif, png, jpg or bmp.
    1
    Select the Desen parçası tab in the Örme elemanları tool window.
    2
    Open the context menu of the tool window.
    3
    Select Resmi al....
    4
    Select the desired image in the Aç dialog box.
    : Image in the format tif, png, jpg or bmp
    5
    Load the file with Open.

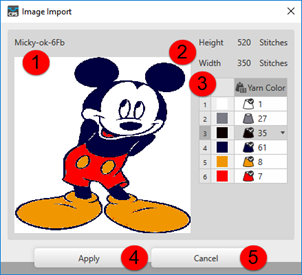

  1. The Resim al dialog box appears.

1

File name and image preview

2

Height and width of the imported image

3

Table with the image colors in use

In the İplik rengi column, you can now allocate other colors to the colors in use.

4

Uygula
Apply the modifications.

The changed image is saved as pattern element.

5

İptal

Close the Resim al dialog box without applying the change

    1
    Make the desired color change.
    2
    Close the dialog box with Uygula.
  1. The changed image is saved as pattern element and can be drawn into the pattern.
