Creating the shape as lined shape in the pattern project

Open the Kesimler tool window:

1: In the Başlat ribbon under Araç penceresi, select the Kesimler tool window.

In the tool window, the existing shapes of the pattern project are displayed.

2: Place the cursor in the tool window and open the context menu with the RMB.

3: Select M boyutunda yeni kesim oluştur... in the context menu.

The Yeni çizgi kesimi dialog box will appear.


Input Format
Stitch	Entry in the table of the lined shape Height by stitches (stitch rows) Width by stitches (wales) : The stepping is converted based on the specification of the steps.
Steps	Entry in the table of the lined shape Height of step by stitches (stitch rows) Width of step by stitches (wales)
Hand-Knitting (Courses)	Entry in the table of the lined shape Height by courses (1 course corresponds 2 stitch rows) Width by stitches (wales)
	Rules for widening with hand knitting
		Knitting before widening following the start
		Widening before knitting following the start (default setting)
Resimden kesim oluştur		No images will be used
		Use image as template
Comment	Information about the shape

4: Select the desired input format.

5: Confirm with the OK key.

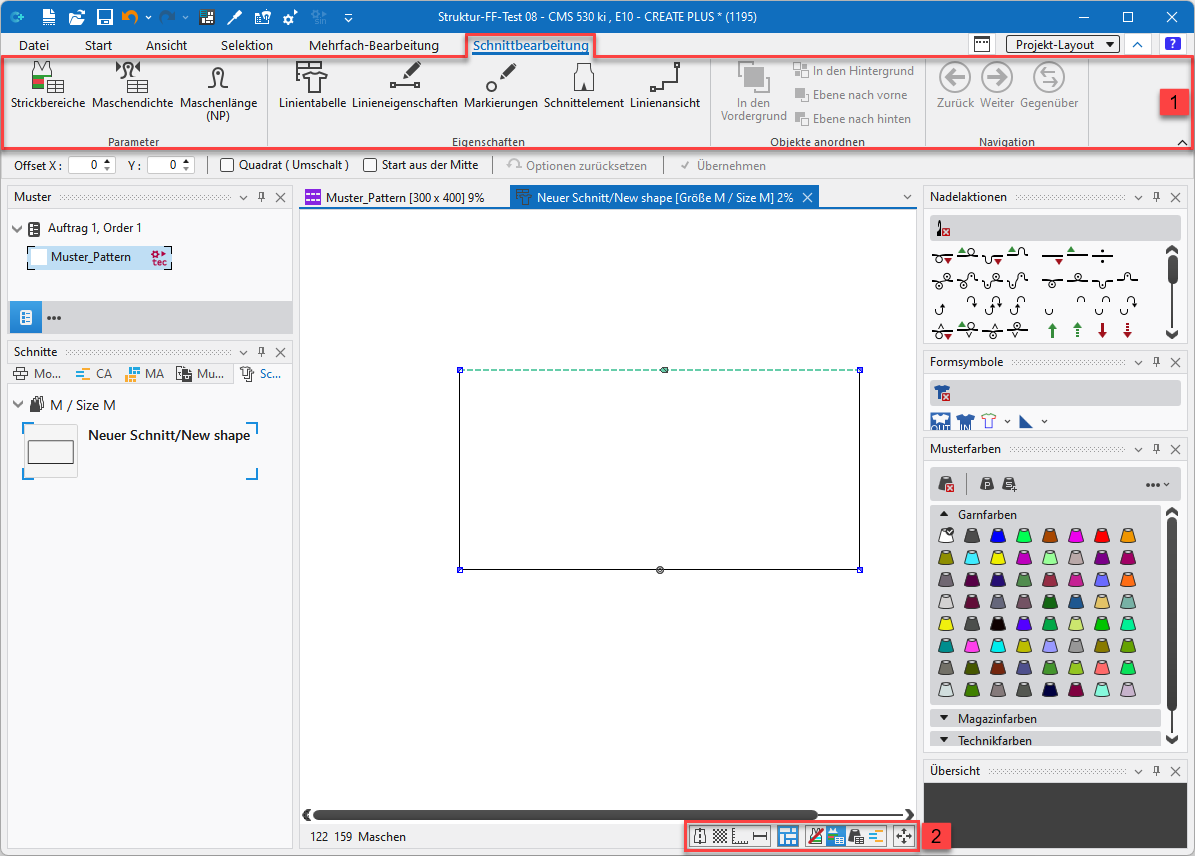

The new lined shape (basic shape) is graphically displayed in the Kesimler tab and in a new document window New shape xx [size x] as rectangle.
Default attributes are used for the shape edges of the lined shape.


1	Kesim düzenleme ribbon
	Parameter group
		Örgü alanları	Create new knitting areas and display existing knitting areas
		İlmek yoğunluğu	Create new stitch density and display existing stitch density
		İlmek uzunluğu (NP)	Display of the İlmek uzunluğu tab in the Setup2-Editor

	Properties group
		Çizgi tablosu	Display of the line table for entering the shape data
		Çizgi özellikleri	Display of the line properties (attributes) of a selected shape edge
		İşaret noktası özellikleri	Display of the marking point properties (attributes) of a selected marking point
		Kesim elemanı	Display of the shape element properties of a selected shape element Neckline / filled neckline Gore Hole Dart Within Shape
		Çizgi görünümü	Graphical display of a selected shape edge
2	Status bar in the document window for shapes
		Show Symmetry Axis
		Show Stitch Grid
		Show Chart Axes
		Show Control Dimensions
		Show Symbols of Marking Points
		Hide Knitting Ranges
		Show Knitting Ranges
		Show Knitting Ranges (yarn color)
		Show Knitting Ranges (CA color)
		Move the selected object with the arrow keys of the keyboard
