Working with the racking correction (VCI)

Open Yatak kaydırma düzeltmesi (VCI) and change the entry in the local knitting element:

  1. The Yatak kaydırma düzeltmesi (VCI) control column is displayed.
    1
    Open the desired local knitting element with double-click, e.g. 3x3 saç.
    2
    Open the selection list in the Başlat ribbon at Araç penceresi and select Pattern Parameters .
    -  or  -
    Click the Pattern Parameters symbol directly under Parametreler.
  1. The Pattern Parameters tool window appears.
    2. 3
    Select the Varsayılan tab for the selection of an 'unused' entry.
    - or -
    Select the Kullanıcı tab for the selection of an 'used' entry.
    4
    Select the desired racking correction index in the column and enter it in the knitting element, in the Yatak kaydırma düzeltmesi (VCI) control column of the technical row for 'transfer'.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

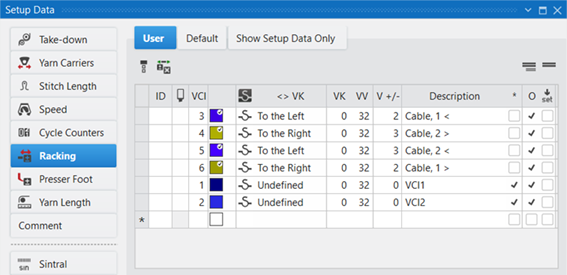

Meaning of Columns of the Yatak kaydırma düzeltmesi (VCI) Table

Column

Display

Setting range

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the line to enter it in the control column

VCI

Index for the indirect allocation of the racking correction

VCIn
n= 1-50

Color

Display of colors to enter in the control columns

The column is displayed only in the Kullanıcı tab

Lines (entries) newly added in the Kullanıcı tab

Racking correction index from the Varsayılan tab
(Entries from the knitting elements of STOLL)

<> VK

Direction of the racking correction

  • VKn>m
    Racking correction to the right
  • VKn<m
    Racking correct to the left

n = A – Z

< = to the left

> = to the right

VK

Racking correction value

m = 0 -10, ?

? = undefined value
(for setting at the MC)

m = 0: No correction

VV

Racking speed

VV = n
n = 1-32

V +/-

Overracking

  • V+n
    The racking moves further by the value n and returns then immediately
  • V-n
    Racking moves by the value n in the opposite direction and then in racking position

V+/- n
n = 1-24

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Varsayılan table available.

Entry is defined as favorite, meaning the entry is available within the Kullanıcı table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Varsayılan or Kullanıcı table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Varsayılan or Kullanıcı table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.
