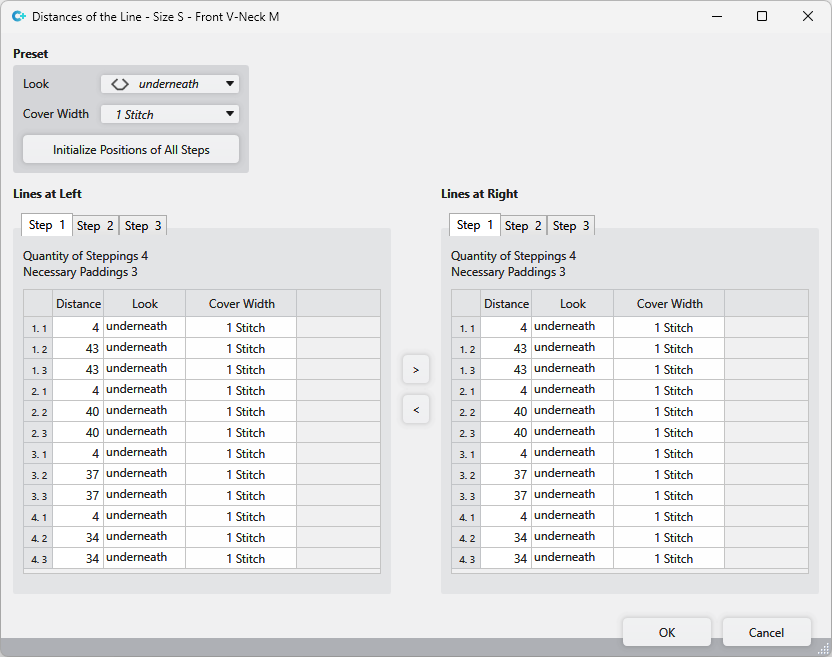

Distances of the Line

Ön veriler

Shows the specifications for the line.

Görüntü

Select the look.

altta kalsın or
üstte kalsın.

Örtme mesafesi

Select cover width:

1 ilmek or
2 ilmek

Tüm aşamaların pozisyonlarını başlat

Initializes the positions of the steps.
The setting is displayed in the line specifications.

Sol çizgiler

Settings of the distances and steppings for the multi-step narrowing of the left line.

Sağ çizgiler

Settings of the distances and steppings for the multi-step narrowing of the right line.

S. 1 / S. 2 / S. 3 / S. 4

Make settings for the different steps.

The steps correspond to the sub-lines for this line in the Çizgi tablosu.

Basamak sayısı

Shows the quantity of steps of the selected stepping.

gereken mesafeler

Shows the quantity of narrowing markings in the selected stepping.

First column

Numbering of the entries.

The first number corresponds to the step in the selected stepping.

The second number, after the point, corresponds to the position of the respective narrowing marking of this stepping. The count starts from the middle outwards.

İç boşluk

Shows the distances between the narrowing markings of a stepping.
Each entry can be edited.

Görüntü

Shows the appearance of each narrowing marking.
Each entry can be edited.

Örtme mesafesi

Shows the cover width of each narrowing marking.
Each entry can be edited.

Mirror the setting of the stepping selected on the left onto the corresponding stepping on the right.

Mirror the setting of the stepping selected on the right onto the corresponding stepping on the left.
