Technical Module: Special Fabric Pieces Directory

Subdirectory Protection Rows, with comb
Knitting elements for the protection rows when knitting with comb
Subdirectory Protection Rows, without comb
Knitting elements for the protection rows when knitting without comb

: These two subdirectories contain knitting elements with different techniques for protection rows consisting of needle actions.

Subdirectory YG-Home
Knitting elements for knitting with yarn carriers to their home position (YG) that are not in their home position at the fabric end.

: The knitting element is only used if no specification is made in the 颜色参数 tool window. This subdirectory contains:

Knitting elements with different knitting modes for knitting-out of the yarn carriers consisting of needle actions
Knitting element for knitting-out the yarn carriers with V-neck

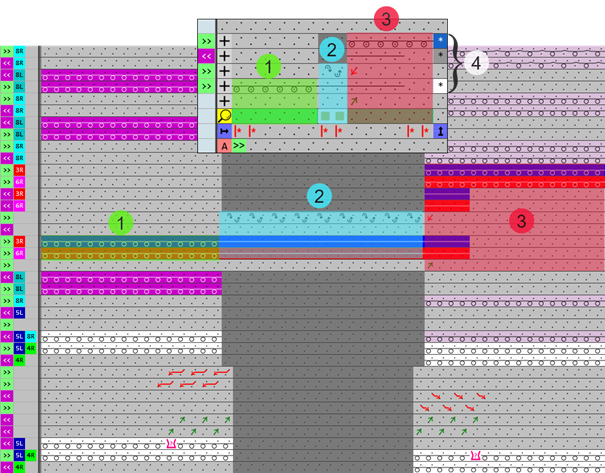

Example for knitting-out of yarn carriers to the right: YG-Home, V-neck


	Presetting of the direction of the knitting-out
1		Definition of areas for the left shoulder
2		Outside Shape	Presetting for the area of the V-neck
3		Definition of areas for the right shoulder
4		Repeating of rows	Symbol * + any desired definition color : The row repetition is repeated according to the quantity of yarn carriers to be knitted-out.
