Knitting Element for the Start

A STOLL knitting element of the 起头 type contains all variants for the options of a start.
Select the desired start in the 新花型 dialog box.

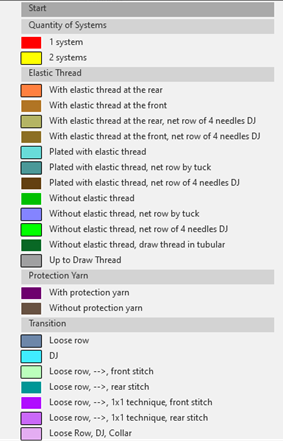

行标记 control column:

: The 行标记 control column appears only in the view of the 起头 knitting element type.

		According to the color entries in the 行标记 control column, the selected start will be extracted from the knitting element in the 编织资源管理器 and saved as local knitting element in the编织元素 tool window / 编织元素 tab of the pattern project.
Filter the view of a start type knitting element:
	Open the menu with the button and set the desired filter.
	Enable the button to show the selected filter within the knitting element and the toolbar.

behavior of comb thread, Float and Lock and start


1	The 执行行，基准行的改写模式 marked in the Float and Lock knitting element will be placed on the first knitting row of the 起头 knitting element.
2	The 执行行，改写模式 defined in the Float and Lock knitting element will be placed on the second knitting row of the 起头 knitting element.
: The last 执行行，插入模式 of the knitting element 牵拉梳纱 will be inserted only if 浮线和锁定（单片） is missing.
