Creating the shape as lined shape in the pattern project

Open the 模型 tool window:

    1
    In the 起头 ribbon under 工具窗口, select the 模型 tool window.
  1. In the tool window, the existing shapes of the pattern project are displayed.
    2. 2
    Place the cursor in the tool window and open the context menu with the RMB.
    3
    Select 创建 M 码新模型... in the context menu.

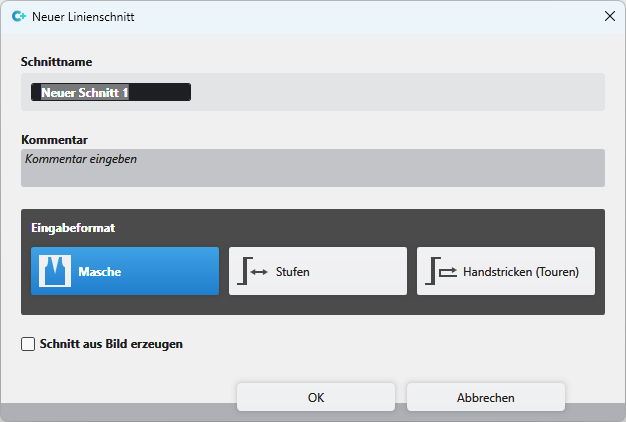

  2. The 新线模型 dialog box will appear.

Input Format

Stitch

Entry in the table of the lined shape

  • Height by stitches (stitch rows)
  • Width by stitches (wales)

: The stepping is converted based on the specification of the steps.

Steps

Entry in the table of the lined shape

  • Height of step by stitches (stitch rows)
  • Width of step by stitches (wales)

Hand-Knitting (Courses)

Entry in the table of the lined shape

  • Height by courses (1 course corresponds 2 stitch rows)
  • Width by stitches (wales)

Rules for widening with hand knitting

Knitting before widening following the start

Widening before knitting following the start (default setting)

从图片创建模型

No images will be used

Use image as template

Comment

Information about the shape

    4
    Select the desired input format.
    5
    Confirm with the OK key.

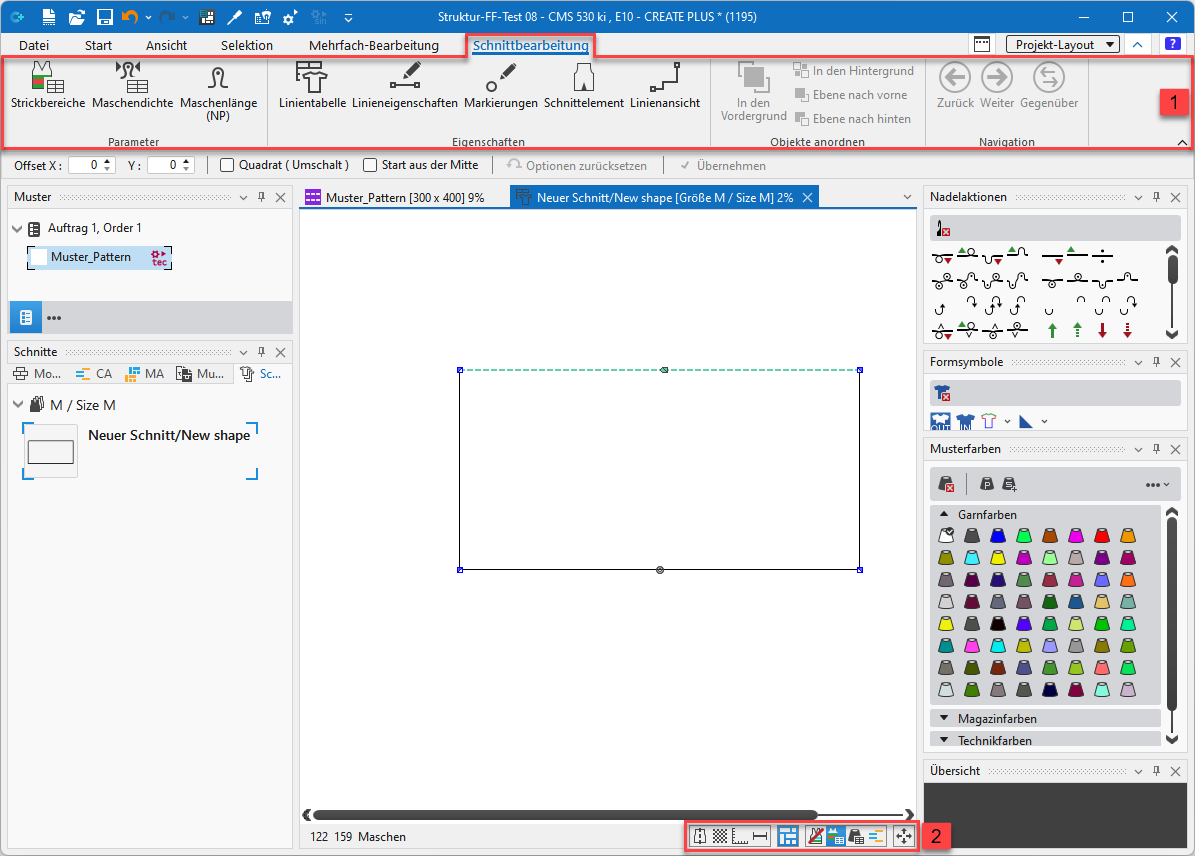

  1. The new lined shape (basic shape) is graphically displayed in the 模型 tab and in a new document window New shape xx [size x] as rectangle.
  2. Default attributes are used for the shape edges of the lined shape.

1

模型编辑 ribbon

Parameter group

编织区域颜色

Create new knitting areas and display existing knitting areas

线圈密度

Create new stitch density and display existing stitch density

线圈长度 (NP)

Display of the 线圈长度 tab in the Setup2-Editor

Properties group

线表

Display of the line table for entering the shape data

线属性

Display of the line properties (attributes) of a selected shape edge

标记点属性

Display of the marking point properties (attributes) of a selected marking point

模型元素

Display of the shape element properties of a selected shape element

  • Neckline / filled neckline
  • Gore
  • Hole
  • Dart
  • Within Shape

线视图

Graphical display of a selected shape edge

2

Status bar in the document window for shapes

Show Symmetry Axis

Show Stitch Grid

Show Chart Axes

Show Control Dimensions

Show Symbols of Marking Points

Hide Knitting Ranges

Show Knitting Ranges

Show Knitting Ranges (yarn color)

Show Knitting Ranges (CA color)

Move the selected object with the arrow keys of the keyboard
