Shape Element Properties and Functions in Context Menu of Shape Elements
- 复制
-
复制 -
水平翻转 -
纵向翻转 -
锁定 -
删除 -
模型元素属性
Procedure:
- 1
- Select the desired shape element.
- 2
- Call-up the context menu of the shape element.
- 3
- Call up the desired menu item.
- The selected function will be executed.
- The 模型元素属性context menu opens the 模型元素属性 tool window.

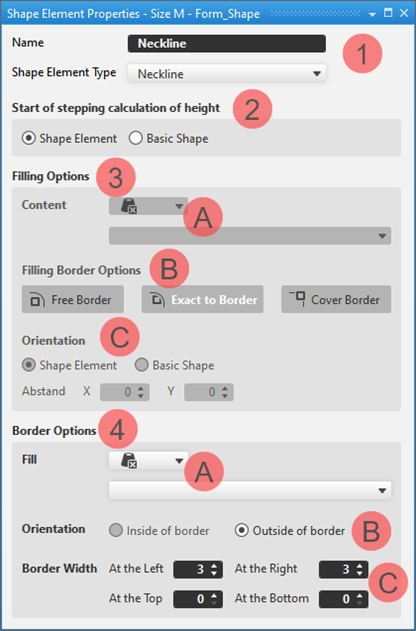

Shape Element Properties
|
| |||
1 | 名称 | The name of the shape element is as desired | |
模型单元的类型 | Characteristics of the shape element for processing it within the shape:
| ||
2 | 开始高度幅度计算 | ||
模型元素 | The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the shape element. | ||
基本模型 | The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the basic shape (baseline). | ||
3 | 填充选项 | ||
A | 内容 | Allocation of a filling color and / or of a knitting element | |
B | 填充边缘选项 |
| |
C | 打印方向 | ||
模型元素 | In the shape element, starting at the reference point of the shape element (bottom left corner of the shape element) a grid is structured with the size of the knitting element. | ||
基本模型 | In the shape element, starting at the reference point of the basic shape (bottom left corner of the basic shape) a grid is structured with the size of the knitting element. | ||
距离 X：/ Y | Horizontal and / or vertical shifting of the reference point in the shape element or in the basic shape. | ||
4 | 边缘选项 | ||
A | 内容 填充 | Allocation of a filling color and / or of a needle action
| |
B | 打印方向 | Entry of a border inward or outward according to the shape element type | |
C | 边缘宽度 | Preset of the border width in pixel for the four shape element edges | |
symbol
for processing with narrowing / widening modules
: The shape element type can be changed via the picklist.
