Modify Markings for Multi-step Widening and Multi-step Narrowing

Modify the markings for multi-step widening and multi-step narrowing:

  1. Shape is created as lined shape.
  2. Shape line with 多步骤放针 or 多步骤收针 allocated under功能 is available.
    1
    Select the shape line with the 多步骤放针 or 多步骤收针 function in the New Shape xx [Size M] document window.
    2
    Open the context menu.
    3
    Select 线属性 .

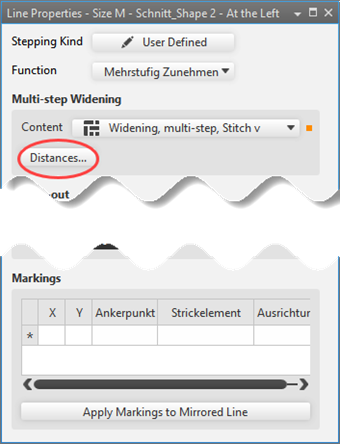

  1. The 线属性 tool window is opened.
    2. 4
    Press the 距离... button in the 多步骤放针 / 多步骤收针 tab.

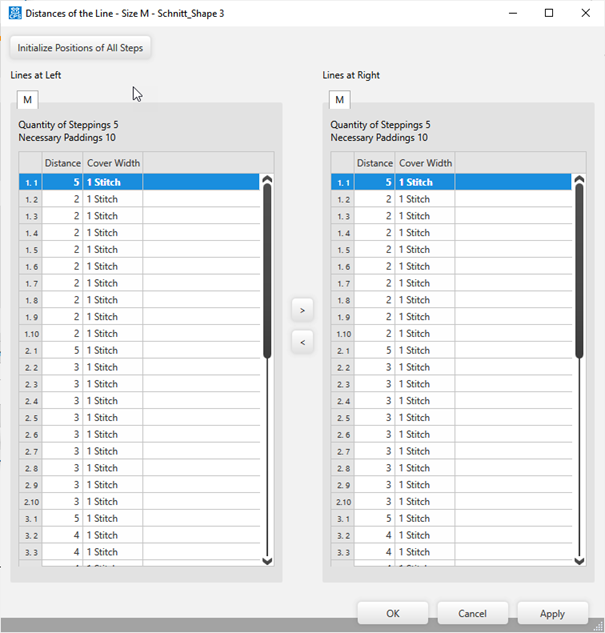

  2. The 线的距离 dialog box appears showing each step (Quantity of Steppings) with the set step width (Necessary Paddings).
    4. 5
    Change the symmetric / asymmetric values of the table.
    6
    Confirm changes by 应用.
    - or -
    Close the dialog box with 确定.
  1. The positions of the symbols for 多步骤放针 appear in the shape.

: You cannot position the symbols for 多步骤放针 or 多步骤收针 manually.
