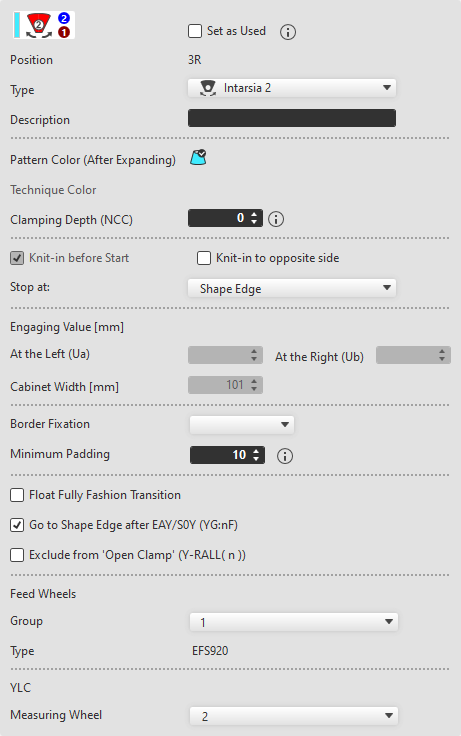

Settings for Yarn Carriers

设置为使用

The yarn carrier is added even though it is not used in the pattern (for example for sequences).

• The yarn carrier appears in the yarn carrier home position (YG) in Sintral.
• The yarn carrier can be used for Sintral functions.

位置

Shows the starting position of the corresponding yarn carrier.

型号

Select yarn carrier type

Only yarn carrier types of the selected machine are available.

自动

The yarn carrier type is determined by the technical processing.

普通

Normal yarn carrier

嵌花1

Intarsia Yarn Carrier Type 1

嵌花 2

Intarsia Yarn Carrier Type 2

双臂

Plating with a yarn carrier with two bows for plating yarn and basic yarn with adjustable distance.

双孔添纱导纱器

Common plating yarn carrier for plating yarn and basic yarn with fixed distance.

可变咬合宽度 +/- (Ua/b)

Plating with two yarn carriers

• Following basic yarn in the plating yarn carrier type U+/- with Ua/b > 29 mm.
• Leading plating yarn in the normal yarn carrier.

普通 2 +/- (Ua/b)

Use normal yarn carriers type2.

• For the combination with intarsia yarn carrier type 1 or type 2.

• You can change the yarn carrier engaging width for plating.
• Example:
  Following basic yarn with Ua/b > 29 mm

衬纬纱 Qw

Weft yarn carrier

• W Machine - Weft Yarn Carrier Qw

衬垫纱 Qt1

Weft yarn carrier with a driving width of 141mm.

• W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3

The driving width can be modified in the same dialog box further down.

衬垫纱 Qt2

Weft yarn carrier with a driving width of 161mm.

• W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3

The driving width can be modified in the same dialog box further down.

衬垫纱 Qt3

Weft yarn carrier with a driving width of 180mm.

• W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3

The driving width can be modified in the same dialog box further down.

自走式

Yarn carrier of the ADF machines

说明

Enter the description for the selected yarn carrier.

花型颜色（扩展之后）

Shows the pattern color of the selected yarn carrier.

工艺颜色

Shows the assigned technique color.

夹持深度 (NCC)

取决于所使用的纱线的情况，可能需要用到一个修正值 (NCC) 来对夹纱刀的压针深度进行修正，以便能够准确夹持纱线。

Example:

• For a thin or elastic yarn, it may be necessary to withdraw the clamping and cutting needle deeper in order to ensure reliable clamping and cutting.
• Sink the clamping and cutting needle by 5 steps deeper: NCC=5.

Value range:

• Default Setting: 0
• Highest Position: -10
  For coarse and less tear-resistant yarns
• Lowest Position: 10
  For fine and elastic yarns

The yarn carrier is knit-in using the 起头之前插入编织带入 function.

• The setting is applied from the 牵拉梳, 夹持 tab of the 配置 dialog box.
• The setting can only be modified, if you selected the 任意定义（在导纱器分配中） option in the 牵拉梳, 夹持 tab of the 配置 dialog box.
• Comb, Clamping tab

编织带入到另一侧

The yarn carrier is knit-in on the opposite side of its home position.

• The setting is only available, if 检测出自动编织带入到相反方向 is disabled in the 更多设置 tab of the 配置 dialog box.
• Further Settings tab

Recommendation:
Useful for machines with single-sided clamping and cutting or if a yarn carrier in the pattern knits-in on one side and knits-out on the other.

停在：

Stop the yarn carriers at the 模型边缘 or SEN 边缘.

咬合宽度 [mm]

When selecting the 可变咬合宽度 +/- (Ua/b) or 普通 2 +/- (Ua/b) yarn carrier type, the engaging width for left and right can be entered.

左侧 (Ua)

Engaging width for the carriage direction to the left

右侧 (Ub)

Engaging width for the carriage direction to the right

滑块宽度 [mm]

Shows the cabinet width of the selected yarn carrier type.

The driving width is displayed for the weft yarn carriers Qw, Qt1, Qt2 and Qt3.

• W Machine - Weft Yarn Carrier Qw
• W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3

Driving Width [mm]

垫入纬纱时导纱器的驱动宽度，单位毫米

The driving width can be modified for the 衬纬纱 Qw yarn carrier type.

• W Machine - Weft Yarn Carrier Qw
• W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3

Border Fixation

Select the module for the border fixation.

For machines with belt take-down, the border fixation is enabled by default.

Minimum Padding

Enter the quantity of rows after which the upright thread is to be fixed.
Value range: 1-999

With a high gauge the value should be low, with a fine gauge correspondingly higher.

浮线全成型过渡

 At the fabric end, the yarn carrier is moved to the home position by float.
Use case: The weft yarn is too thick for the needle hook gauge.

 At the fabric end, the yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.

The option takes effect on ff-trans-2_B and 浮线和锁定.

EAY/S0Y 之后到模型边缘 (YG:nF)

The yarn carrier will be positioned at the #L and #R counters and follows the shape, with an activated check box.

从 ”打开紗夹“ (Y-RALL( n ))命令中排除

The yarn carrier remains clamped despite Y-RALL, with an activated check box.

• Activate in case that threads of individual yarn carriers wind around the take-down roller.
• You control the releasing of the clamp with the entry of n 行之后打开夹纱装置 in the 打开夹纱装置 column of the 颜色参数 table.
• Color Parameters
• Yarn Carrier Presettings

Not for BMS!

Exclude from Clamping (YG:n!;)

With the check box enabled, the yarn carrier will not be clamped but moved to the '!' position.

Only ADF!

送纱器

If working with feed wheels is activated in the machine attributes, you can assign a group to the selected yarn carrier here.

The creating and managing of the groups takes place in the 送纱器组合 tab

• Group Feed Wheels Tab

组

Assign a feed wheel group to the yarn carrier.
All groups previously created in the 送纱器组合 tab are available for selection.

型号

Shows the feed wheel type of the selected group.

You set the feed wheel type in the 送纱器组合 tab.

YLC

With 纱线长度控制 enabled in 配置 -> 更多设置, you can assign the corresponding measuring wheel to each yarn carrier.

• Further Settings tab

测纱轮

Select the corresponding measuring wheel for the yarn carrier.
