Step by Step to 'Pattern-12A'

  1. The pattern project of pattern ‚Pattern-12‘ is open.
    1
    Select ‚Muster_Pattern_12 in the tool window.
    2
    Open the context menu with RMB and select 复制花型... .
  1. The 复制花型及模型 -xxx dialog box appears.
    2. 3
    Rename the pattern.
    4
    Activate Selection 是否也创建模型副本？.
  2. The pending shape of ‚Patten-12‘ will be duplicated as well.
    3. 5
    Rename the shape if necessary.
    6
    Close the dialog box with the OK button.
    7
    Select the 模型 tab.
    8
    Select the duplicate of the shape.
    9
    Open the shape by double-clicking.
    10
    In the 线表 tool window, position the cursor in the area beside the 基本模型 button, open the context menu with RMB and call-up 添加新模型元素....
    - or -
    Position the cursor in the document window (graphic), open the context menu with the RMB and select 添加新模型元素....
    11
    Select 不对称 in the 楔形 selection menu.
    12

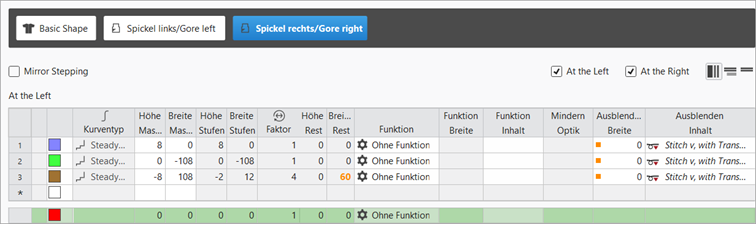

    Open the line table of the new shape element and enter the desired values.
  3. The newly created shape element is displayed in the graphic and in the line table as well.

Shape Element Type: Gore asymmetrical

: Table for the 楔形 shape element contains values for At the Left!
However, the shape element is placed on the 'right' side of the fabric piece.

    13
    Select 楔形 shape element.
    14
    Open the context menu with RMB and select 纵向翻转.
    15
    Then open the context menu again -> select 对称复制.
  1. New knitting element is saved and is displayed in the basic shape.
    2. 16
    To position a 楔形 shape element, open the input window by double click and enter the coordinates.
    - or –
    Place the shape element at the desired position with the LMB pressed.
    17
    Position both 楔形 shape elements below the collar.
    : When positioning, pay attention to the knitting technique (carriage direction)!
    18
    Click the 起头 button under 预览 in the 导纱器 ribbon.
  2. The New Pattern xx document window is opened as view and the 导纱器 ribbon appears.
    3. 19
    Open the dialog box via 显示导纱器.
    20
    If necessary, make the desired settings for allocating yarn carriers.
    21
    Start the 工艺 处理:
    Show symbol view after technical processing.
    22
    Generate Sintral.
    23
    Start the Sintral 检验.
    24
    提取 the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-12.zip.
  2. Load knitting program into the machine.

: The extracted file CMS530.Pattern-12A.zip can be loaded onto the machine with an USB stick or via Ethernet.
