Import Image

I. Import Image:

1: Start the program double-clicking .

2: Click Importer une image in the start page under Start.
- or -
In the started CREATE PLUS, in the File ribbon, Importer tab, select Importer une image.

The Image import dialog box appears.

3: Select and open the path of the desired image via Ouvrir in the File ribbon of the Image Import dialog box.
: The following formats can be read: bmp, jpg, jpeg, jpe, jfif, gif, tiff, tif, png

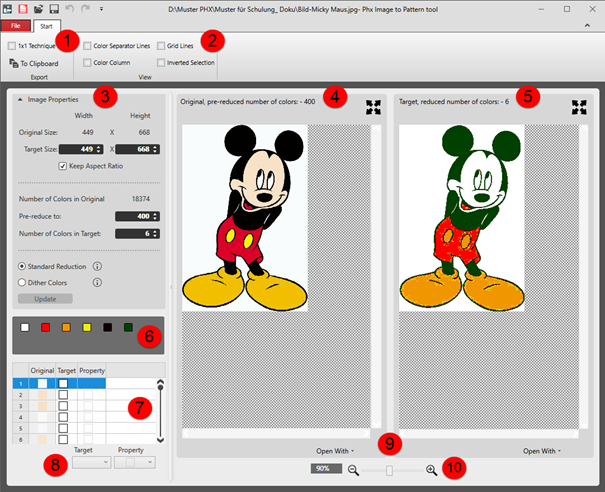

In the dialog box, the Original and the Target is displayed with a pre-set color reduction.


Start ribbon
1	Ribbon Group Exporter
		Technique 1x1	The image will be doubled in the width (1x1 technique). : Attention Observe the knitting technique of the pattern! Toutes les aiguilles Technique-1x1 This affects the insertion of the image!
		Dans le presse-papiers	The edited image is copied to the clipboard. : In the CPS, the image can be inserted in the Pattern Elements tool window under Pattern Elements.
		Élaborer un projet de dessin	Create a pattern project with a pattern based on the edited image.
2	Ribbon Group Affichage : The settings are displayed only in the Destination, nombre de couleurs réduit : view.
		Lignes de séparation des couleurs	Display of the Destination, nombre de couleurs réduit : view of colored separating lines for subdividing the different areas with different quantity of colors
		Lignes de la grille	Display of a grid in the Destination, nombre de couleurs réduit : view
		Colonne de couleur	Display of an additional column in the Destination, nombre de couleurs réduit : view with the existing colors in each case.
		Sélection inversée	Display of the selected color : Select the color only in the Original or in the Destination.
3	Propriétés de l'image
	Grandeur originale :		Display of the original size of the image in width x height
	Taille de la destination :		Edit boxes for the size of the target in width x height
		Conserver les proportions		Size of the image freely changeable in width and height.
				Size of the image changeable depending on the aspect ratio.
	Nombre de couleurs dans l'original		Original quantity of colors in the original image
	Réduire préalablement à :		Entry of the quantity of colors to which the image is to be reduced when loading it. : This, already reduced image will be displayed as Original.
	Nombre de couleurs dans la cible :		Entry of the quantity of colors for reducing the Original to Destination
	Réduction par défaut		Type of reduction of an image, e.g. for Jacquard
	Mélanger les couleurs (Dithering)		Type of reduction of an image with smooth color transitions, e.g. for photos
	Actualiser		Apply changes of the settings
4	Display of the original image with already previously reduced colors
5	Display of the Destination image with the specified quantity of colors
6	Display of all colors in the target For selecting all the original colors of the table that correspond to the target color : Corresponds to the entry under Nombre de couleurs dans la cible : .
7	Table with the following columns
	Original		Quantity of colors which were entered at Réduire préalablement à :.
	Destination		Allocation of a target color to a original color : Manual changing of the allocation via the selection menu at the corresponding target color.
	Caractéristique		Extérieur de la forme	Allocate 'outside shape' to one or more selected target colors. : When importing an image, e.g. as shape template
			Utiliser la couleur	One or more selected target colors are imported as color in the CPS. : When importing an image as Jacquard template
			Transparent	Allocate Transparent to one or more selected target colors. : When importing an image, which is to be positioned on a specific background.
8	Destination		Selection of the target color for the allocation of a property
	Caractéristique		Selection of the desired property for the selected target color
9	Ouvrir avec		Open the original or the target in an image editing app to make changes
10	Zoom		Zoom in or out
