Technical Module: Intarsia, Border Processing Directory

Subdirectory for Binding:
Knitting elements for the border processing with intarsia
: In the Rangée de répétition the knitting elements have defined no repetitions.
Subdirectory for Feeding:
Knitting elements for feeding the yarn carriers at changes of color fields
: In the Rangée de répétition the knitting elements have defined repetitions.

:

The knitting elements of both directories have the same structure.
The tiles of a knitting element are valid for both knitting modes

Knitting on all needles
Toutes les aiguilles
Knitting by 1x1 technique
Technique-1x1

Explanation of the additional symbols within the search area and processing area

In the search area of the attribute row :

Side:

In the processing area:

Searching row for needle occupancy
In order to check the needle occupancy within the pattern and to define needle groups (cycles)
Symbols of Needle Occupancy

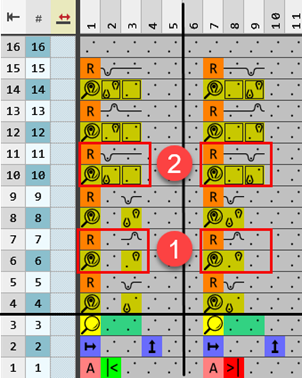

Example for binding: Cueillage devant, Entrelacement intarsia

Processing Area
1	Searching row for the needle occupancy of one needle in the width (cycles) : Knitting on all needles
2	Searching row for the needle occupancy of two needles in the width (cycles) Marking of cycles Only with the Groupe 1 icon, if the cycles are not directly side by side. With the Groupe 1 and Groupe 2 icons, if two cycles are directly side by side. : Knitting by 1x1 technique

	Searching row for needle occupancies
		Occupation des aiguilles, occupé à l'avant, occupé à l'arrière
		Occupation des aiguilles, inoccupé à l'avant, ne pas vérifier à l'arrière
		Occupation des aiguilles, occupé à l'avant, inoccupé à l'arrière
		Occupation des aiguilles, ne pas vérifier à l'avant, occupé à l'arrière
		Occupation des aiguilles, inoccupé à l'avant, occupé à l'arrière
		Occupation des aiguilles, ne pas vérifier à l'avant, ne pas vérifier à l'arrière
		Occupation des aiguilles, ne pas vérifier à l'avant, inoccupé à l'arrière
		Occupation des aiguilles, inoccupé à l'avant, ne pas vérifier à l'arrière
		Occupation des aiguilles, inoccupé à l'avant, inoccupé à l'arrière
	Draw-in the desired needle action in order to override an existing pattern row. : You may define only one row as reference row.
Search Area
		Entry at the left edge
		Entry at the right edge
	Enter any desired definition color from the Couleurs de définition selection menu

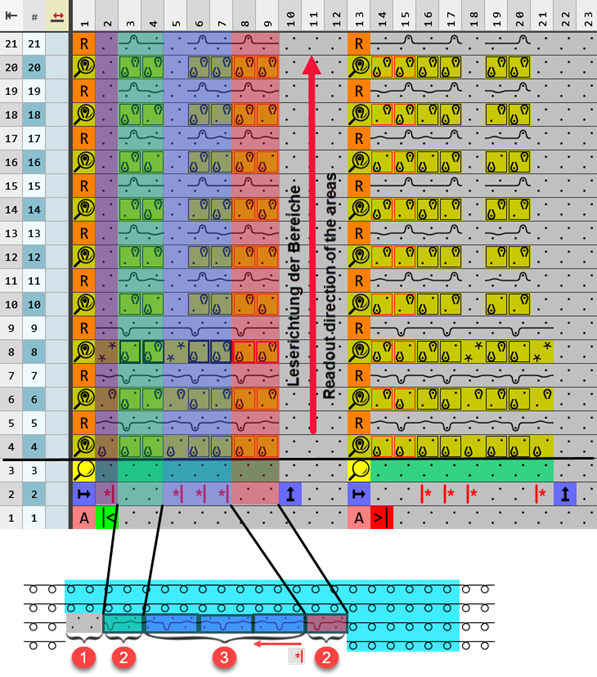

Example feeding with intarsia binding knitting-in: Cueillage, -v-, Traitement du bord


: Reading order: Each individual column is browsed vertically from bottom to top and according to the needle occupancies with the defined cycles (groups 1 or 2).
1st step:	Insertion of the indicated number of needles (e.g. 2) under Gradation autorisée sans élaboration du bord, à gauche from the Color parameter table without needle actions : Result with the Intarsia binding knitting-inat the left specification.
2nd step:	Insert of fix areas (Columns without repetition)
3rd step:	Insert of the repetitions from the function column with the Répétition vers la gauche icon.

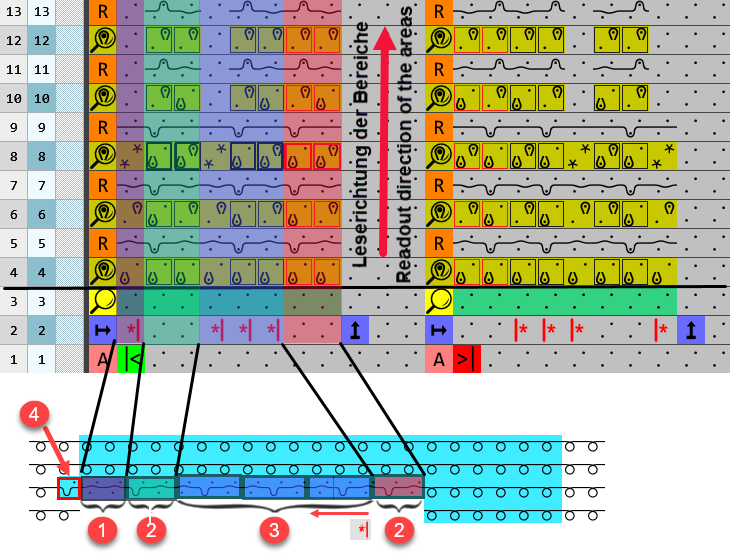

Example feeding with intarsia binding knitting-out: Cueillage, -v-, Traitement du bord


: Reading order: Each column is browsed vertically from bottom to top and according to the needle occupancies with the defined cycles.
1st step:	Insertion of the specified number of needles (e.g. 2) under Gradation autorisée sans élaboration du bord, à gauche from the Color parameter table with the labeled needle action in the defined column with repetition : Result with the Intarsia binding knitting-out at the left specification.
2nd step:	Insert of fix areas (Columns without repetition)
3rd step:	Insert of the repetitions from the function column with the Répétition vers la droite icon.
4	Intarsia binding knitting-out at the left .

Reading one or more columns will be stopped if the appropriate needle occupancy is found and the knitting information from the reference row is entered in the corresponding pattern row.
