Technical Module: Knit-in before the Start, Float and Lock (1 piece) Directory

This subdirectory contains all knitting elements for knitting-in and locking of the yarn carriers used in the pattern with single-piece knitting. According to the selected machine type, the corresponding Float and Lock (1 piece) knitting element is automatically inserted in the pattern before start.

Depending on:

Machine type
Using the comb (yes/no)
Using clamping / cutting (yes/no)
Type of take-down system:

Comb + Multiflex
Comb + Belt
Belt
Multiflex

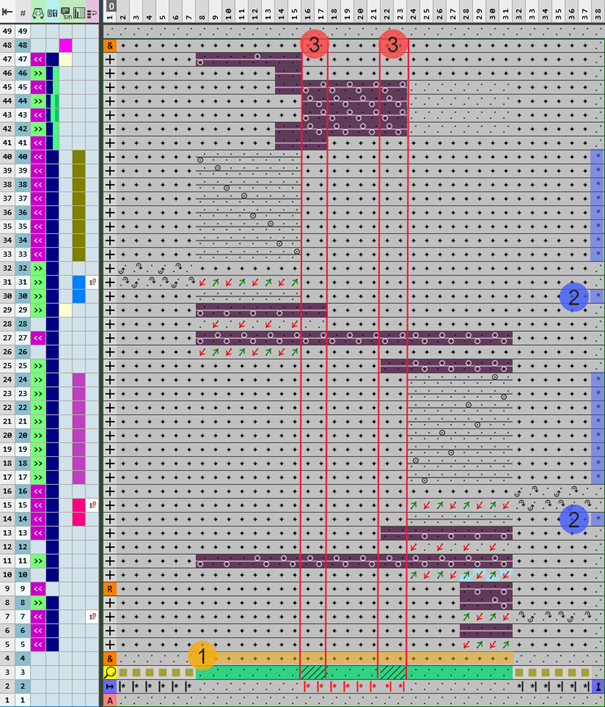

Example Float and Lock [8 -- 8]

In Design Pattern: Début, 1x1 (réduit)

		The row marked as in the Float and Lock [8 - 8] knitting element will be placed on the first knitting row of the Début, 1x1 (réduit) knitting element used in the design pattern.
1		Row with the Transparent symbol for overwriting an executing row in the previously inserted Fil du peigne, 1 pièce, type 2 knitting element.
2		Row repetition without definition color for knitting in of all used yarn carriers from right to left.
3	+	Limitation de zone dans la rangée de recherche with definition color : Columns are only used with double occupancy of the yarn carrier rails to correctly position the yarn carriers.
