Changing line properties of a shape line

Changing Line Properties:

Direct change of a line property in the corresponding column of the table
Select a line in the table, open the tool window with the Propriétés des lignes button and make the desired entries.

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> Propriétés des lignes and make the desired entries in the tool window.

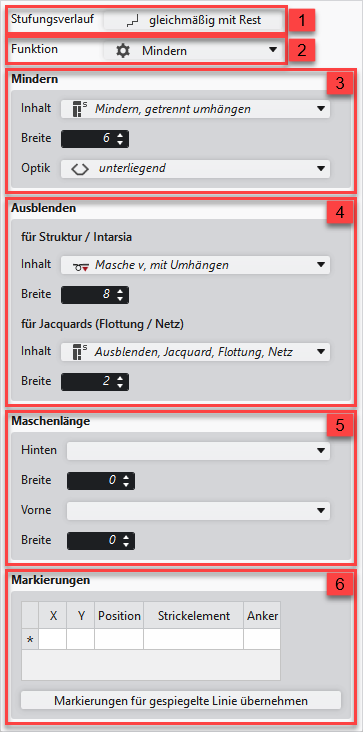

	1	Modification of the curve type
	2	Modification of the function of a shape line Without Function Narrowing Widening etc.
	3	Modifications for the shape line with the Narrowing function
	4	Modifications of the Fading-out attribute for a shape line
	5	Specification for a shape line for working with PTS in the shape edge
	6	Display of the markings that are assigned to a shape line.
Apply Markings to Mirrored Line	Applies the line-bound markings of the selected line to the line on the opposite. : Perhaps existing markings of the opposite shape line are removed.
