Shape Element Properties and Functions in Context Menu of Shape Elements

Procedure:

    1
    Select the desired shape element.
    2
    Call-up the context menu of the shape element.
    3
    Call up the desired menu item.
  1. The selected function will be executed.
  2. The Propriétés d'élément de coupecontext menu opens the Propriétés d'élément de coupe tool window.

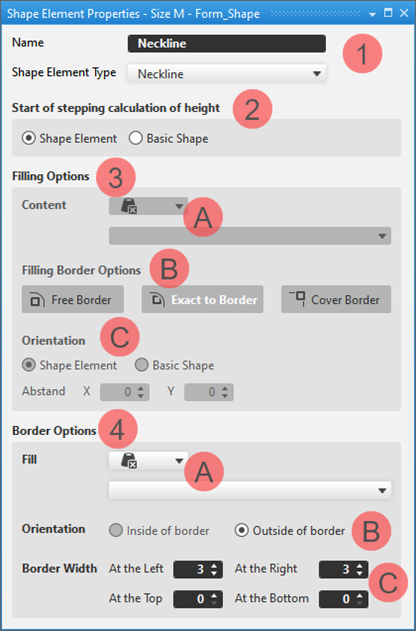

Shape Element Properties

1

Nom

The name of the shape element is as desired

Type d'élément de coupe

Characteristics of the shape element for processing it within the shape:

  • Encolure
    Outside Shape
  • Encolure remplie !
    Within shape with allocation of narrowing modules
  • Gousset
    Within shape for not knitting with the symbol
  • Trou
    Outside Shape
  • Pince
    Within shape with symbols for processing with narrowing / widening modules
  • Intérieur de la forme
    Allocation of knitting elements, pattern elements or an image

: The shape element type can be changed via the picklist.

2

Début du calcul des escaliers sur la hauteur

Élément de coupe

The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the shape element.

coupe de base

The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the basic shape (baseline).

3

Options de remplissage

A

Contenu

Allocation of a filling color and / or of a knitting element

B

Option de remplissag de bord

  • Bord libre
  • Bord exact
  • Couvrir le bord

C

Alignement

Élément de coupe

In the shape element, starting at the reference point of the shape element (bottom left corner of the shape element) a grid is structured with the size of the knitting element.
Then, the knitting element is filled with the preset for border filling options.

coupe de base

In the shape element, starting at the reference point of the basic shape (bottom left corner of the basic shape) a grid is structured with the size of the knitting element.
Then, the knitting element is filled with the preset for border filling options.

Distance X:/ Y

Horizontal and / or vertical shifting of the reference point in the shape element or in the basic shape.

4

Options pour bord

A

Contenu

Remplissage

Allocation of a filling color and / or of a needle action

: Allocation of a knitting element larger than 1x1 is not possible.

B

Alignement

Entry of a border inward or outward according to the shape element type

C

Largeur de bord

Preset of the border width in pixel for the four shape element edges
