Create Narrowing Module for French Shoulder

Generate private narrowing module:

Narrowing procedure with knitting and transferring of a French shoulder

Left shape line - Shoulder	Right shape line - Shoulder

Watch out when generating modules:

• The narrowing module must be matched to the shape.
• The stepping for narrowing existing in the shape must be observed by the racking step in the module.

1

Open the Explorer with Knit Explorer.

2

Open directory.
Dépôt d'élément de tricotage → Fully Fashion → Diminuer .

3

Select Diminution, report séparé module.

4

Call-up Copier in the context menu.
- or –
Call up Copier in the ribbon of the Knit Explorer.

5

Call-up Insérer in the context menu of the same directory.
- or -
Call up Insérer in the ribbon of the Knit Explorer.

1. The copy appears in the directory.

6

Change the name of the module.

7

Open the module double clicking.

2. The whole content of the module with all variants appears in a new instance of the CPS.

8

Delete rows or variants which are no longer needed.

Keep this variants only:

• All Needles
• Racking by 3 needles
• For narrowing above and / or underneath

1

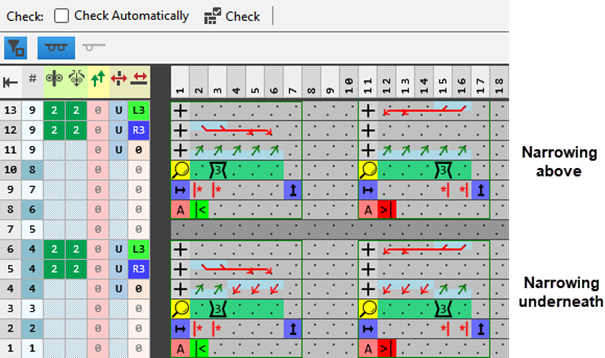

Delete tiles (columns / rows) which are no longer needed.

1

Insert the required quantity of rows in to both tiles:

• ForDiminution en-dessous on all needles
• ForDiminution au-dessus on all needles

1

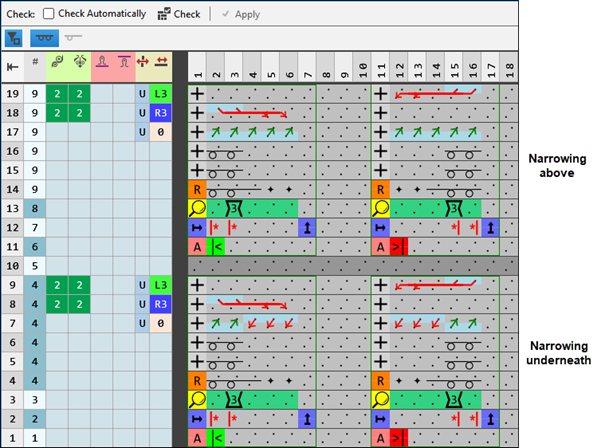

Draw in the desired knitting process.

1

Check the structure of the narrowing module by the Contrôler : button.

1. :
   The knitting process itself will not be checked.
   The correct structure of the tiles only will be checked.

2

Allocate the private narrowing module to shape lines of the shape.
