Divided Stitch Cam

Enclosing the Weft Yarn Earlier with DJ Fabrics

Problem:
Enclosing the weft yarn by risen needles in advance.
Advantages:

Stitch cam can be exchanged easily.
Came de chute séparée can be configured separately for each system and for both carriage directions.
The converted knitting system with Came de chute séparée can form stitches and tuck without restrictions.

Disadvantage:

Transferring and split stitches cannot be performed by this cam box.

Cam Conversion for Came de chute séparée:

Cam box distance	6‘‘	5‘‘
Gauge [E]	---	---	---	---	---	E 14
Cam Conversion (Retrofit Kit)	---	---	---	---	---	At the Left: 259661 At the Right: 259662

Cam box distance

6‘‘

5‘‘

Gauge [E]

---

E 14

Cam Conversion
(Retrofit Kit)

---

At the Left: 259661

At the Right: 259662

Application Examples:

Newly inserted weft yarns will not be held securely below the needle crossing (crossing point of the supporting surfaces of opposite needles), as they are not enclosed by the fabric. Raising the needles earlier by the transferring curve allows to "lock" the weft yarn in the needle bed gap until the following stitch row is knitted.

System Function

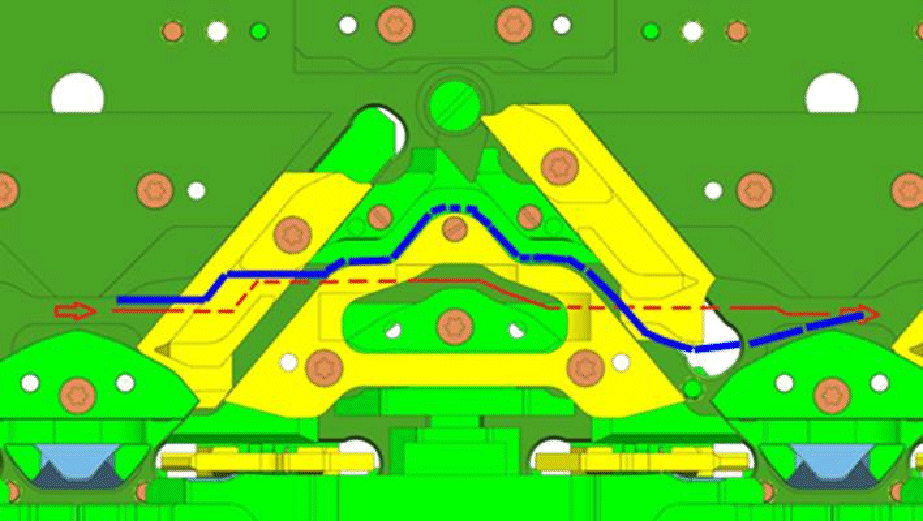

	Blue line: Shows the needle curve with DJ. The needle is already risen in front of the stitch cam. Holding deep is extended by the width of the stitch cam. Red line: Shows the needle curve with Holding-deep the fabric by transfer function and with the cam box conversion designed for it.
Needle raising without divided stitch cam	Needle raising by divided stitch cam

System Function

Blue line:

Shows the needle curve with DJ.
The needle is already risen in front of the stitch cam.
Holding deep is extended by the width of the stitch cam.

Red line:

Shows the needle curve with Holding-deep the fabric by transfer function and with the cam box conversion designed for it.

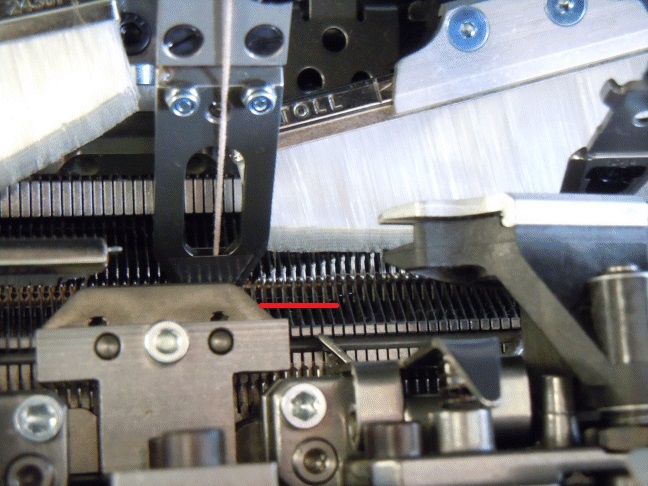

Needle raising without divided stitch cam

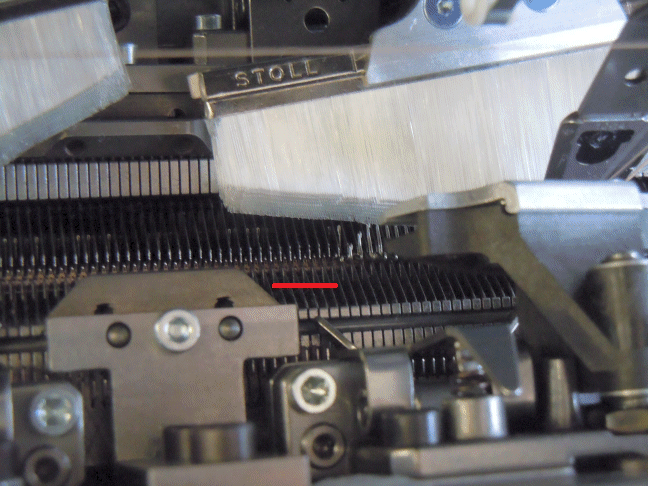

Needle raising by divided stitch cam

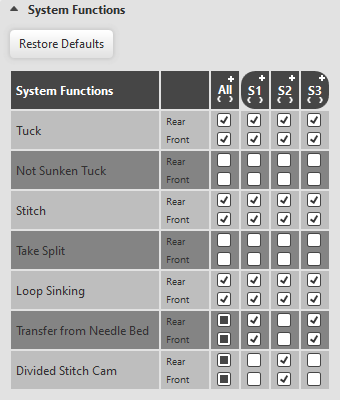

Programming with CREATE PLUS:

The cam Came de chute séparée is mounted on the machine. For example at system S2

1: Call up the Attributs de machine tab in the Configuration tool window.

2: Click the converted knitting system (e.g. S2) at the Came de chute séparée of the Fonctions système section.
You can create your machine under propre and make the settings there.

3: If necessary, activate the corresponding selection for further systems.

Reporter de la fonture will automatically be disabled for this systems.

4: Draw the DJ pattern with weft yarn.

5: Enter Tricoter sur courbe de bouche-trou sur les deux fontures into the Fonction système control column.

6: Allocate knitting system (S2 e.g.) in the corresponding control column.

Gauge-dependent restriction of the stitch lengths:

Only the way down from channel of the divided stitch cam to the loop sinking edge can be used for the stitch length.

Gauge	Max. valid NP value
E10	11.8
E12	12.6
E14	13.0
E16	---
E18	---
E 6.2	12.6
E7.2	13.0
E8.2	---

During the technical processing, the system specifications are automatically checked for each front and rear system and the carriage direction:
An error message appears if a divided stitch cam is mounted and the specified stitch length exceeds the allowed NP value.
Sintral command for Tricoter sur courbe de bouche-trou sur les deux fontures with divided stitch cam:
S:#U%AH(5)-%HY (6);
