Racking Value


valeur de chevalement

Make settings for the racking value.

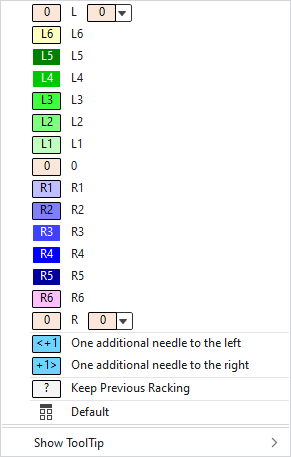

In the context menu on the control column of a pattern you have the following options:

L

Select the desired racking value to the left.

to

Select the racking value from L6 to R6.

R

Select the desired racking value to the right.


Une aiguille vers la gauche en plus

Move the racking additionally one needle to the left.


Une aiguille vers la droite en plus

Move the racking additionally one needle to the right.


Conserver le chevalement précédent

Keep the previous racking.

Default

Sets the setting on Default.

Applies the entry of the default setting from the header row.

Supprimer

Deletes the entry.

Afficher l'info-bulle

In the context menu on the control column of a module you additionally have the following options:


L max.

Maximum racking to the left

The value is converted into an absolute racking value corresponding to the allowed racking value of the actual machine when inserting the module.


R max.

Maximum racking to the right.

The value is converted into an absolute racking value corresponding to the allowed racking value of the actual machine when inserting the module.
