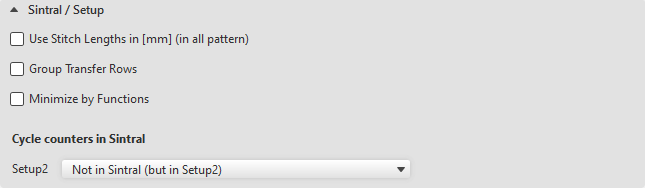

Sintral/Setup

Utiliser la longueur de maille en [mm] (dans tous les dessins)

Save the stitch tension as a mm value in the Setup file, otherwise as an NP value.
With a specified mm value, the value no longer needs to be converted on the machine when yarn length control is used.

Regrouper les rangées de report

Group several consecutive transfer rows to a jacquard line in the jacquard (*.jac). This saves jacquard lines.

Minimiser à l'aide de fonctions

Call-up identical Sintral blocks by functions. This reduces the memory requirement of the machine.
The Sintral line can not be displayed in the Jacquard control column with the check box active.

Commutateur de rapport dans le Sintral

Select where the cycle counters should be entered into the knitting program:

Before or after the knitting program,
Only as a comment or
Not in the Sintral, but only in the Setup 2
