Needle Data (Find)

Données d'aiguilles

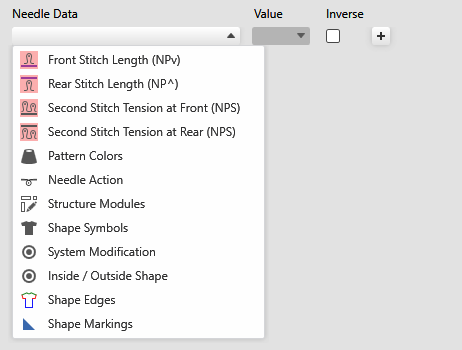

Select the needle data in the drop-down menu that are to be searched.

Depending on the selection different settings options are offered.

Valeur

Enter a value that is to be searched.

Inverse

Inverts the selection of the selected data.

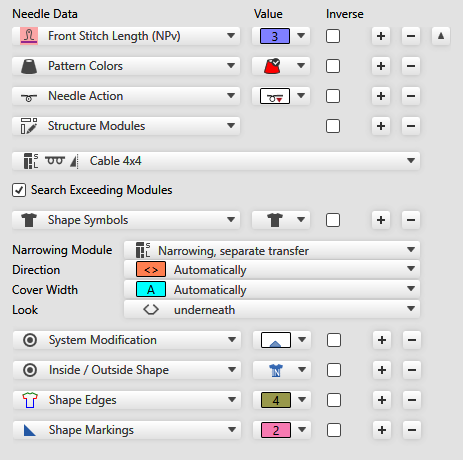

Adds an input line for a new search criterion.

You can define various search criteria at the same time.

Deletes the corresponding input line.

Moves the search criterion to the control columns data.

Only possible with stitch length.
The stitch length can be drawn into the control columns and this way works for complete rows.
But it can also be entered needle-exactly into the pattern and as a result is processed with the corresponding settings with NPJ.

If the stitch length is selected in the control columns data, then the entry is affected in the control column with Find and Replace.
If the stitch length is selected in the needle data, then the needle-exact entry is affected with Find and Replace.

Longueur de la maille avant (NPv)

Longueur de la maille arrière (NP^)

Deuxième serre avant (NPS)

Deuxième serre arrière (NPS)

Select the value for the stitch length.
All values in use are offered for selection.

When searching for entries of the stitch length in the search area Needle Data, only needle-exact NP entries are searched for.
Not all control columns are taken into account.

With S-machines it is also possible to search for the second stitch tension.

Couleurs de dessin

Select the pattern color.
All colors in use are offered for selection.

Action de l'aiguille

Select the Action de l'aiguille in the drop-down menu.
All needle actions in use are offered for selection.

Modules de structure

Select the structure module.

All structure modules that are available in the Modulestool window, are offered for selection.

Rechercher les modules coupés

If modules that were partially overwritten can be found in the pattern, then these modules are taken into account and replaced.

Rechercher les modules coupés

Only complete existent modules are replaced.

This setting does not apply to modules that are cut into by the selection or the shape, but were actually partially overwritten.

Icônes de forme

Select the shape symbol or the module type.

If you select a module type, depending on the selection appear additional menus for Direction, Largeur de rapprochement and Aspect .

Autres actions de l'aiguille

Select the symbol for not sinking or devoré.

À l'intérieur / à l'extérieur de la forme.

Select the symbol for inside or outside shape.

Lisières de forme

Select the shape edge.
All shape edges in use are offered for selection.

Marquages de forme

Select the shape marking.
All shape markings in use are offered for selection.
