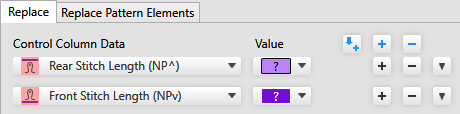

Control Column Data (Replace / Exchange)

Données de colonnes de commande

Select the control column that is to be entered.

All control columns available for the machine type can be selected, even if they do not contain entries in the pattern.

Valeur

Enter a value that is to be inserted.

All entries that are defined in the Données Setup as Par défaut are offered for selection.

The values Par défaut or Supprimer can also be selected.

With the Échanger settings only the data in use in the pattern is available for selection.

Adds the current search criteria for Données de colonnes de commande and Données d'aiguilles to the already defined criteria for insert.

Adds the current cursor attribute to the already defined criteria for insert.

This action affects all criteria for insert, not only Données de colonnes de commande.

Select the attribute in the pattern that is to be inserted and then click on this button, to rapidly define the criteria for insert.

Deletes all criteria for insert.

Adds an input line for a new criterion for insert.

Deletes the corresponding input line.

Moves the criterion for insert to the needle data.

Only possible with stitch length.
The stitch length can be drawn into the control columns and this way works for complete rows.
But it can also be entered needle-exactly into the pattern and as a result is processed with the corresponding settings with NPJ.

If the stitch length is selected in the control columns data, then the entry is affected in the control column with Find and Replace.
If the stitch length is selected in the needle data, then the needle-exact entry is affected with Find and Replace.
