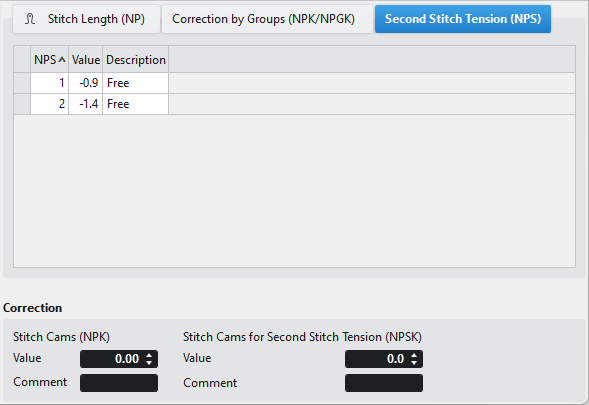

Second Stitch Tension (NPS)
The Deuxième serre (NPS) tab only appears if you have selected a CMS 730 S or CMS 830 S.
Individual needles or areas are knitted with a smaller stitch tension (stitch short, tuck short).
The value for the second stitch tension is specified relatively to the first stitch tension. The difference to the first stitch tension is named "Offset". The second stitch tension cannot be higher than the first stitch tension. This means, that the offset value for the second stitch tension is always negative.
|
NPS |
Index |
|
Valeur |
Valeur de la longueur de maille (deuxième serre) La position des cames de chute est affichée comme décalage par rapport à la serre normale Specification in NP values: Value range: -8.00 to 0.00 Specification in millimeters (mm): Value range: -8.00 to 0.00 |
|
Description |
Remarque sur l'utilisation de l'entrée Vous pouvez introduire ici un nouveau texte. |
correction
Cames de chute (NPK)
|
Valeur |
Enter value by which all stitch cams are to be corrected.
|
|
Commentaire |
Enter a comment about the NPK value. |
With stitch lengths specifications in NP values as well as in millimeters (mm).Came de chute Deuxième serre (NPSK)
|
Valeur |
Enter value by which all stitch cams are to be corrected.
|
|
Commentaire |
Enter a comment about the NPSK value. |
