How to Invert a Dimensioning

The Flip Dimensioning function is only available, if no other dimensioning sets one of the points fix.

  1. The dimensioned shape is opened in the Dimensioning View .
  2. The startpoint of the shoulder and the point of sleeve departure are dimensioned vertically to each other.
    The vertical position of the shape points to each other is upside-down.
    Error state: Crossing shape lines!
    1

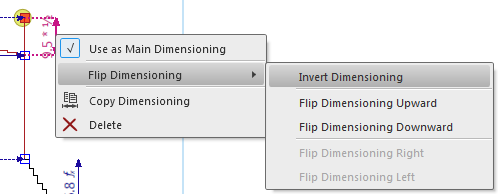

    Open the context menu for the desired dimensioning.
    2
    Select Flip DimensioningInvert Dimensioning.
  1. The startpoint of the shoulder is positioned above the point of sleeve departure.

You can invert a horizontal dimensioning the same way.
The Flip Dimensioning function is only available, if no other dimensioning sets one of the points fix.
