Import Image

I. Import Image:

1: Start the program double-clicking .

2: Click Importa immagine in the start page under Start.
- or -
In the started CREATE PLUS, in the File ribbon, Importa tab, select Importa immagine.

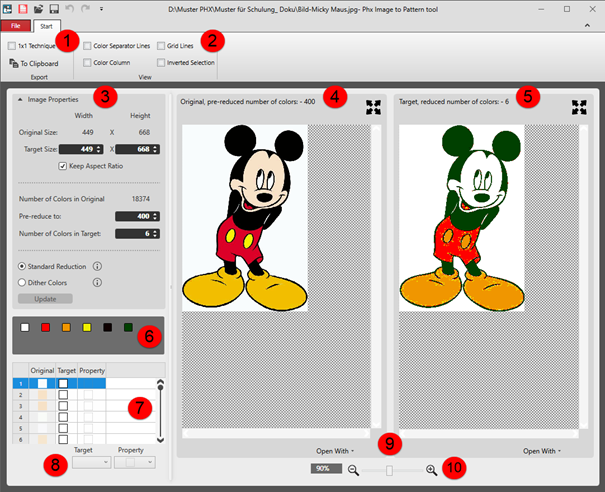

The Image import dialog box appears.

3: Select and open the path of the desired image via Apri in the File ribbon of the Image Import dialog box.
: The following formats can be read: bmp, jpg, jpeg, jpe, jfif, gif, tiff, tif, png

In the dialog box, the Originale and the Destinazione is displayed with a pre-set color reduction.


Start ribbon
1	Ribbon Group Esporta
		Tecnica 1x1	The image will be doubled in the width (1x1 technique). : Attention Observe the knitting technique of the pattern! Tutti gli aghi Tecnica 1x1 This affects the insertion of the image!
		Negli appunti	The edited image is copied to the clipboard. : In the CPS, the image can be inserted in the Parti di disegno tool window under Pattern Elements.
		Crea progetto per disegni	Create a pattern project with a pattern based on the edited image.
2	Ribbon Group Vista : The settings are displayed only in the Destinazione, numero di colori ridotto: view.
		Linee di separazione colori	Display of the Destinazione, numero di colori ridotto: view of colored separating lines for subdividing the different areas with different quantity of colors
		Linee griglia	Display of a grid in the Destinazione, numero di colori ridotto: view
		Colonna colore	Display of an additional column in the Destinazione, numero di colori ridotto: view with the existing colors in each case.
		Selezione invertita	Display of the selected color : Select the color only in the Originale or in the Destinazione.
3	Proprietà dell'immagine
	Dimensione originale:		Display of the original size of the image in width x height
	Dimensione di destinazione:		Edit boxes for the size of the target in width x height
		Mantieni proporzioni		Size of the image freely changeable in width and height.
				Size of the image changeable depending on the aspect ratio.
	Numero di colori nell'originale		Original quantity of colors in the original image
	Riduci innanzitutto a:		Entry of the quantity of colors to which the image is to be reduced when loading it. : This, already reduced image will be displayed as Originale.
	Numero di colori di destinazione:		Entry of the quantity of colors for reducing the Originale to Destinazione
	Riduzione standard		Type of reduction of an image, e.g. for Jacquard
	Mescolanza di colori (retinatura)		Type of reduction of an image with smooth color transitions, e.g. for photos
	Aggiorna		Apply changes of the settings
4	Display of the original image with already previously reduced colors
5	Display of the Destinazione image with the specified quantity of colors
6	Display of all colors in the target For selecting all the original colors of the table that correspond to the target color : Corresponds to the entry under Numero di colori di destinazione: .
7	Table with the following columns
	Originale		Quantity of colors which were entered at Riduci innanzitutto a:.
	Destinazione		Allocation of a target color to a original color : Manual changing of the allocation via the selection menu at the corresponding target color.
	Proprietà		All'esterno della forma	Allocate 'outside shape' to one or more selected target colors. : When importing an image, e.g. as shape template
			Utilizza colore	One or more selected target colors are imported as color in the CPS. : When importing an image as Jacquard template
			Trasparente	Allocate Trasparente to one or more selected target colors. : When importing an image, which is to be positioned on a specific background.
8	Destinazione		Selection of the target color for the allocation of a property
	Proprietà		Selection of the desired property for the selected target color
9	Apri con		Open the original or the target in an image editing app to make changes
10	Zoom		Zoom in or out
