Behavior of the Main take-down (WMF) table after the technical processing

I. Carry out technical processing:

The Disegno design is opened.
The desired structure is generated.
Pattern related changes were made in the Tirapezza principale (WMF) control column.

1: Start the technical processing for the selected pattern by the button in the Avvio ribbon under Tecnica.

The result is shown in the pattern name... document window by the unprotected symbol view.

2: Click the Dati Setup icon in the Avvio ribbon under Parametri.

The Dati Setup tool window appears.

:

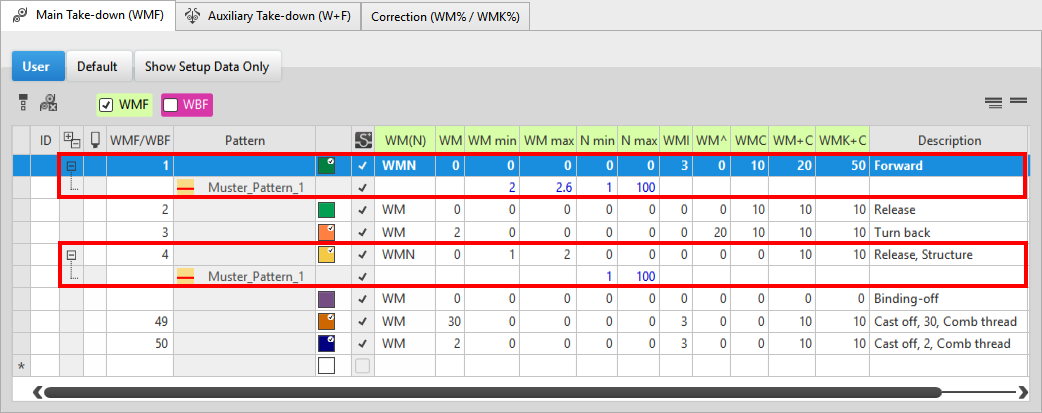

Sub-rows with calculated values for some fabric take-down values will be generated by the technical processing.

Values in the main row = 0
Fabric take-down values in the sub-rows are calculated based on the information in the main row and the pattern width.
Values in the main row > 0
For the sub-rows no new entry is calculated.

Attention:
If you change a value in a sub-row, it will not be adapted automatically when changing the pattern width.
