Shape Element Properties and Functions in Context Menu of Shape Elements

Procedure:

    1
    Select the desired shape element.
    2
    Call-up the context menu of the shape element.
    3
    Call up the desired menu item.
  1. The selected function will be executed.
  2. The Proprietà dell'elemento di tagliocontext menu opens the Proprietà dell'elemento di taglio tool window.

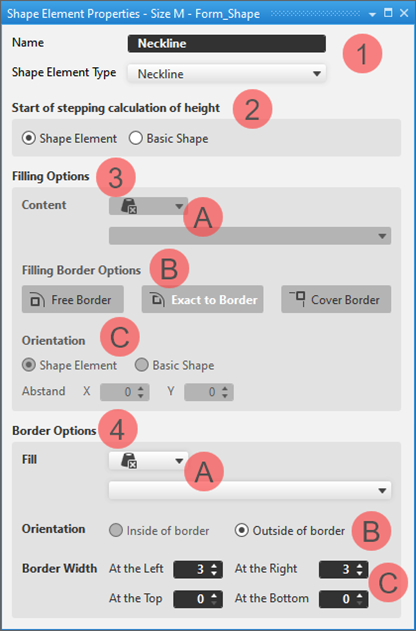

Shape Element Properties

1

Nome

The name of the shape element is as desired

Tipo elemento di taglio

Characteristics of the shape element for processing it within the shape:

  • Scollatura
    Outside Shape
  • Scollatura riempita
    Within shape with allocation of narrowing modules
  • Tassello
    Within shape for not knitting with the symbol
  • Foro
    Outside Shape
  • Pince
    Within shape with symbols for processing with narrowing / widening modules
  • All'interno della forma
    Allocation of knitting elements, pattern elements or an image

: The shape element type can be changed via the picklist.

2

Inizio del calcolo scalatura in altezza

Elemento di taglio

The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the shape element.

Taglio base

The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the basic shape (baseline).

3

Opzioni di riempimento

A

Contenuto

Allocation of a filling color and / or of a knitting element

B

Opzioni di riempimento bordi

  • Bordo libero
  • Bordo esatto
  • Copri bordo

C

Allineamento

Elemento di taglio

In the shape element, starting at the reference point of the shape element (bottom left corner of the shape element) a grid is structured with the size of the knitting element.
Then, the knitting element is filled with the preset for border filling options.

Taglio base

In the shape element, starting at the reference point of the basic shape (bottom left corner of the basic shape) a grid is structured with the size of the knitting element.
Then, the knitting element is filled with the preset for border filling options.

Distanza X:/ Y

Horizontal and / or vertical shifting of the reference point in the shape element or in the basic shape.

4

Opzioni per il bordo

A

Contenuto

Riempimento

Allocation of a filling color and / or of a needle action

: Allocation of a knitting element larger than 1x1 is not possible.

B

Allineamento

Entry of a border inward or outward according to the shape element type

C

Spessore del margine

Preset of the border width in pixel for the four shape element edges
