Save the image, copy it to the clipboard or create a project

: The target is saved in the STOLL Image Import type *.sii.

: A pattern element is created based on the target and copied to the clipboard.

I. Save image / Save as:

  1. The image is edited and the desired result is displayed.
    1
    Open the Salvar importação de imagem como... dialog box.
    Arquivo ribbon -> Salvar -> Salvar como
    2
    Enter the desired path for saving.
    3
    Enter file name:
  1. The image is saved with the file name and in the (STOLL Image Import) format.
    2. 4
    Close the dialog box with X.
  1. The saved image can be opened again in the Importação de imagem dialog.

II. Copy the image to the clipboard and open it in a new pattern project:

  1. The image is edited and the desired result is displayed.
    1
    Copy the image to the clipboard.
    Casa ribbon -> Exportar -> Na área de transferência
  1. The image is located in the clipboard.
    2. 2
    Create a new project in the Quick Access toolbar of the Image import with the button.
    - or -
    start the CPS with double click on the and create a new pattern project with button.
  2. The Novo projecto de amostra dialog box appears.
    3. 3
    Make the desired settings.
    4
    Enter the appropriate width and height for inserting the image under Dimensão.
    5
    Close the dialog box with OK.
  3. The new pattern project appears.
    4. 6
    Select the Partes de amostra tab in the Elementos de tricotagem tool window.
    7
    Position the cursor in the tool window.
    8
    Insert the image from the clipboard into the pattern project with Ctrl + V.
    9
    Select a pattern element and draw it in the pattern.

III. Create a new pattern project from the edited image.

  1. The image is edited and the desired result is displayed.
    1
    Create the new pattern project.
    Casa ribbon -> Exportar -> Criar projecto de amostra
  1. The Novo projecto de amostra dialog box appears.
    2. 2
    Make the desired settings.
    3
    Close the dialog box with OK.
  2. The new pattern project appears with the image.

IV. Changing the colors of an image in the pattern project:

  1. A pattern project is created.
  2. The image has the format tif, png, jpg or bmp.
    1
    Select the Partes de amostra tab in the Elementos de tricotagem tool window.
    2
    Open the context menu of the tool window.
    3
    Select Importar imagem....
    4
    Select the desired image in the Abrir dialog box.
    : Image in the format tif, png, jpg or bmp
    5
    Load the file with Open.

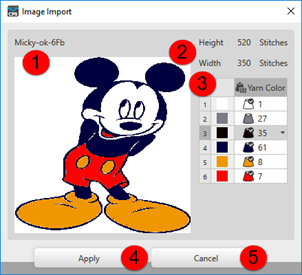

  1. The Importação de imagem dialog box appears.

1

File name and image preview

2

Height and width of the imported image

3

Table with the image colors in use

In the Cor do fio column, you can now allocate other colors to the colors in use.

4

Aceitar
Apply the modifications.

The changed image is saved as pattern element.

5

Cancelar

Close the Importação de imagem dialog box without applying the change

    1
    Make the desired color change.
    2
    Close the dialog box with Aceitar.
  1. The changed image is saved as pattern element and can be drawn into the pattern.
