Color Arrangement Editor

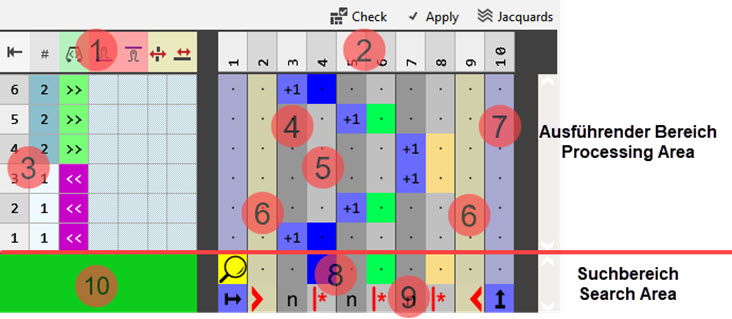

Designation of the rows and columns in the Color Arrangement Editor (CA)


1	Control Columns : All control columns are available
2	Column bar with numbering for selecting columns
3	Row bar with numbering for selecting rows Control column data for pattern rows
Processing Area				Search Area
4	Reference column with reference numbers For Reference Rows For Additional Rows			8	Search row with the search colors
5	Color column in the color segment			9	Column and Row Attributes CA definition of areas (functions of the search colors)
6	Shape column with Fully Fashion With knit&wear			10	Color of the color entry in the control column
7	Column for defining a repeating of rows

Check:			Automático	The created knitting element are not automatically checked regarding the correct structure.
			Automático	The created knitting element are automatically checked regarding the correct structure.
			Manual	Checking of the Color Arrangement regarding the correct use of tools in the editor
Apply		Apply changes without closing the editor
Jacquard		Opening of the Jacquard dialog box to display the Jacquards inserted in the design pattern
