Creating the shape as lined shape in the pattern project

Open the Cortes tool window:

1: In the Início ribbon under Janela de ferramentas, select the Cortes tool window.

In the tool window, the existing shapes of the pattern project are displayed.

2: Place the cursor in the tool window and open the context menu with the RMB.

3: Select Criar novo corte em tamanho M... in the context menu.

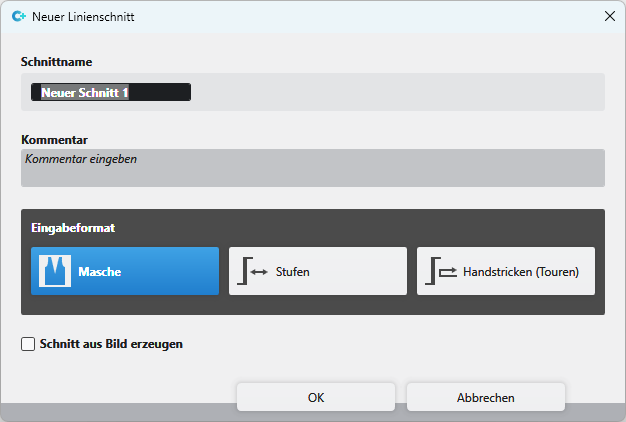

The Novo corte de linhas dialog box will appear.


Input Format
Stitch	Entry in the table of the lined shape Height by stitches (stitch rows) Width by stitches (wales) : The stepping is converted based on the specification of the steps.
Steps	Entry in the table of the lined shape Height of step by stitches (stitch rows) Width of step by stitches (wales)
Hand-Knitting (Courses)	Entry in the table of the lined shape Height by courses (1 course corresponds 2 stitch rows) Width by stitches (wales)
	Rules for widening with hand knitting
		Knitting before widening following the start
		Widening before knitting following the start (default setting)
Criar corte da imagem		No images will be used
		Use image as template
Comment	Information about the shape

4: Select the desired input format.

5: Confirm with the OK key.

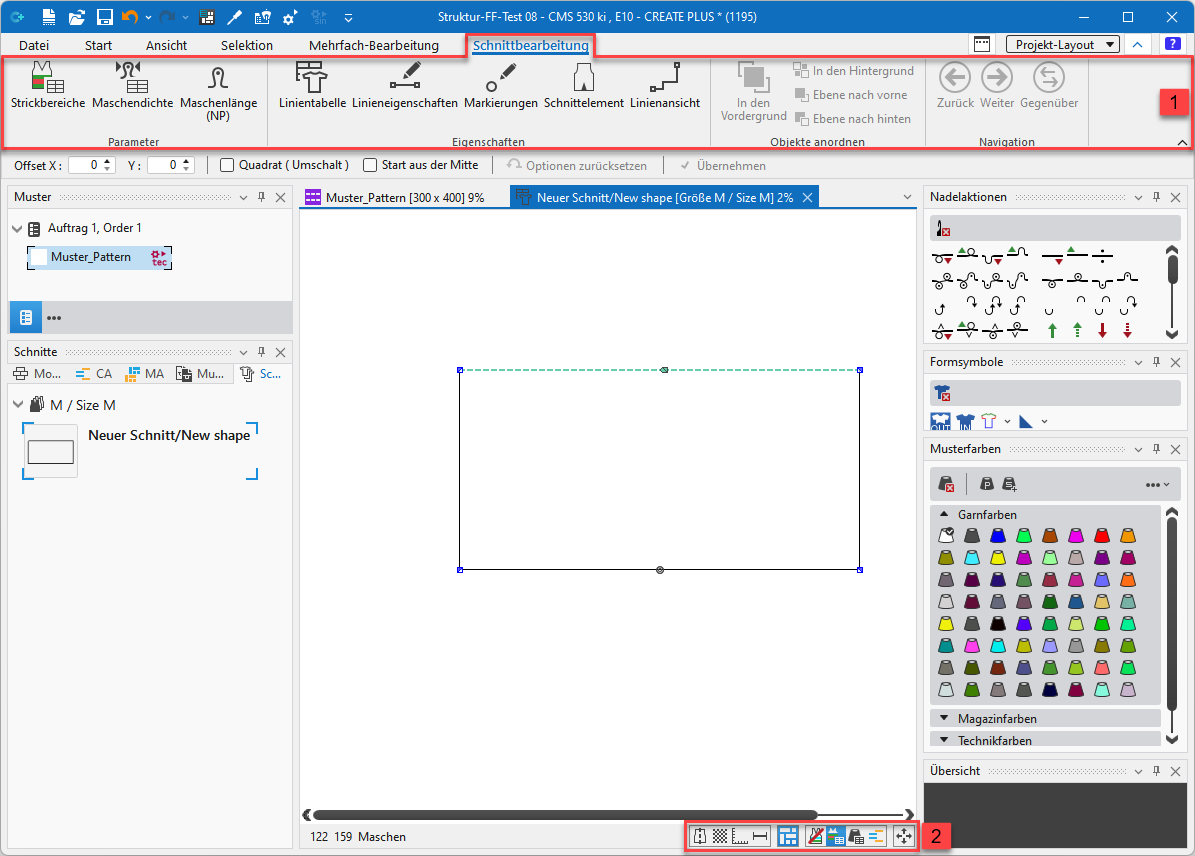

The new lined shape (basic shape) is graphically displayed in the Cortes tab and in a new document window New shape xx [size x] as rectangle.
Default attributes are used for the shape edges of the lined shape.


1	Edição de corte ribbon
	Parameter group
		Áreas de tricotagem	Create new knitting areas and display existing knitting areas
		Densidade das malhas	Create new stitch density and display existing stitch density
		Graduação (NP)	Display of the Graduação tab in the Setup2-Editor

	Properties group
		Tabela de linhas	Display of the line table for entering the shape data
		Propriedades de linha	Display of the line properties (attributes) of a selected shape edge
		Propriedades de ponto de marcação	Display of the marking point properties (attributes) of a selected marking point
		Elemento de corte	Display of the shape element properties of a selected shape element Neckline / filled neckline Gore Hole Dart Within Shape
		Vista de linhas	Graphical display of a selected shape edge
2	Status bar in the document window for shapes
		Show Symmetry Axis
		Show Stitch Grid
		Show Chart Axes
		Show Control Dimensions
		Show Symbols of Marking Points
		Hide Knitting Ranges
		Show Knitting Ranges
		Show Knitting Ranges (yarn color)
		Show Knitting Ranges (CA color)
		Move the selected object with the arrow keys of the keyboard
