Create horizontal and or vertical control dimensioning

The control dimensioning serves for controlling or measuring heights and / or widths in stitches and centimeters / inches.

: The settings in centimeters or inches depend on the preset stitch density.

Defining and Allocating Stitch Density:

  1. A basic shape is created with all the desired shape elements.
  2. The Cortes tab is displayed.
    1
    Select the shape.
  1. Lined shape (basic shape) is graphically displayed in the New shape xx [size x] document window as rectangle.
    2. 2
    Click the Densidade das malhas button under Parâmetros in the Edição de corte ribbon.

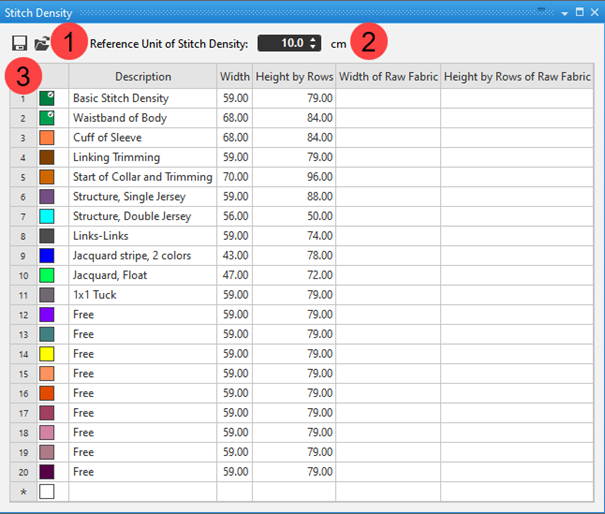

  1. The Stitch Density tool window appears.

: The STOLL default table will always be used for a new pattern project by default. This table applies to all sizes and shapes.

1

Save the self-defined stitch density table of the active Pattern Project as *.sdtpl file.

Loading a saved Stitch Density table

2

Display of the reference measurement of the specified stitch densities in the table

:

  • Start window -> Opções -> Corte de dimensões -> Unidades de medida-
  • Configuração tool window -> All shapes -> Unidades de medida

3

1. Column

Running line numbering

2. Column

Allocation of a color for the differentiation of the different stitch densities

3. Column

Description for using the stitch densities

Largura

Stitch quantity in the width related to the selected reference measurement

Altura em fileiras

Quantity of stitch rows related to the selected reference measurement

Largura do tecido sem finalizar

Information about stitch quantity in the width related to the selected reference measurement in the raw fabric (before finishing)

values are not displayed or have influence during the control dimensioning

Altura em fileiras do tecido sem finalizar

Information about the quantity of stitch rows related to the selected reference measurement in the raw fabric (not finished fabric)

values are not displayed or have influence during the control dimensioning

    3
    Change the existing entry in the table.
    - or -
    Allocate values to an entry labeled livre.
    - or -
    Add a new entry to the table.
    4
    In the tool window Elementos de tricotagem select the tab Cortes.
  1. In the tool window, the existing shapes of the pattern project are displayed.
    2. 5
    Select the desired shape.
    6
    Select Propriedades in the context menu.
  2. The Propriedades de corte dialog box appears.
    3. 7
    Allocate the desired entry of the table under Especificações para cálculo de fio for Densidade das malhas na amostra.
  1. The selected stitch density is used in the control dimensioning for the calculation in centimeters / inches.

: The allocation of a stitch density can be different for every shape.

Insert horizontal or vertical control dimensioning:

  1. A basic shape is created with all the desired shape elements.
  2. Desired stitch density is allocated to the basic shape.
    1
    Position the cursor on a shape line point (starting point).
    2
    Open the context menu with RMB ->Adicionar dimensionamento de controle horizontal.
    - or -
    Select Adicionar dimensionamento de controle vertical .
    3
    Position the cursor on the shape line point (endpoint).
    4
    Confirm with .LMB.
  1. The horizontal / vertical control dimensioning is displayed in the document window in the status bar with the active button.
    2. 5
    To position the control dimensioning line move it with the LMB pressed.
