Modify Markings for Multi-step Widening and Multi-step Narrowing

Modify the markings for multi-step widening and multi-step narrowing:

  1. Shape is created as lined shape.
  2. Shape line with Multi-step Widening or Minguar em vários passos allocated underFunção is available.
    1
    Select the shape line with the Multi-step Widening or Minguar em vários passos function in the New Shape xx [Size M] document window.
    2
    Open the context menu.
    3
    Select Propriedades de linha:.
  1. The Propriedades de linha tool window is opened.
    2. 4

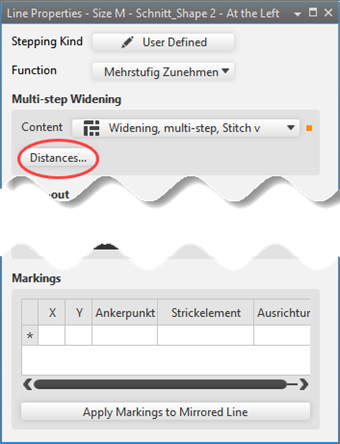

    Press the Distâncias... button in the Aumentar em vários passos / Minguar em vários passos tab.

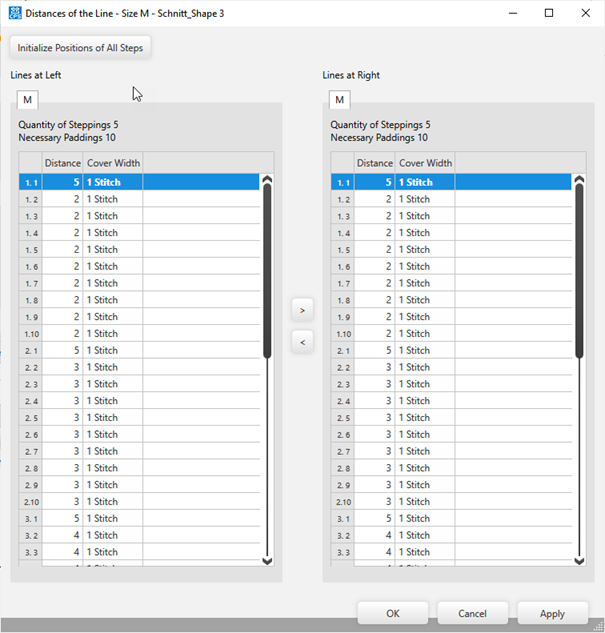

  2. The Distâncias da linha dialog box appears showing each step (Número de passos) with the set step width (distâncias necessárias).
    4. 5
    Change the symmetric / asymmetric values of the table.
    6
    Confirm changes by Aceitar.
    - or -
    Close the dialog box with OK.
  1. The positions of the symbols for Multi-step Widening appear in the shape.

: You cannot position the symbols for Multi-step Widening or Minguar de vários passos manually.
