Creating the shape as lined shape in the pattern project

Open the Cortes tool window:

    1
    In the Início ribbon under Janela de ferramentas, select the Cortes tool window.
  1. In the tool window, the existing shapes of the pattern project are displayed.
    2. 2
    Place the cursor in the tool window and open the context menu.
    3
    Select Criar novo corte em tamanho M... in the context menu.
  2. The Novo corte de linhas dialog box will appear.
    3. 4
    Select the desired input format.
    5
    Confirm with the OK key.

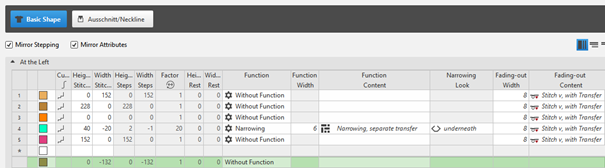

  3. The new lined shape (basic shape) is graphically displayed in the Cortes tool window and in a new document window New shape xx [size x] as rectangle.
    : The default attributes will be used for the shape edges of the lined shape.
    4. 6
    For creating a lined shape based on the displayed rectangle click the Propriedades button in the ribbon under Tabela de linhas.
    - or -
    Use the graphic displayed in the document window.
    7
    Create the desired shape lines.
    - or –
    Import the existing shape into the pattern project.
    8
    Allocate the desired shape line attributes to the shape line.

: You may use the method you prefer as both views are always adjusted to each other.

Basic Shape: Front



Shape Element Type: Neckline symmetric

Create the Pences type of shape element for the left and right hand side.

:
The Pences shape element contains aligning or .

Alinhar para a direita

Symbol is used in the shape element dart on the left side of the basic shape.

Alinhar para a esquerda

Symbol is used in the shape element dart on the right side of the basic shape.



    1
    Open the lines of the created shape element in Tabela de linhas in order to define presets of the line.
    - or -
    Open the line by double click on the desired shape line.
    2
    Enter the values for the dart at the left:
    3
    Allocate shape lines and attributes.

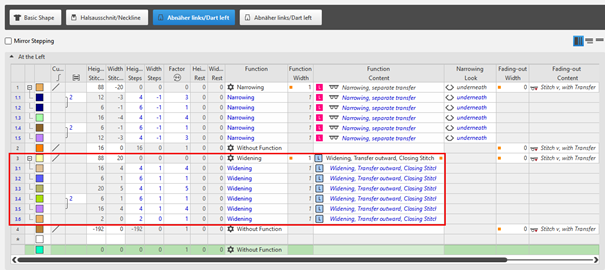

: The first created Pences shape element is linked to the left side of the basic shape leading to the line table Esquerda.

Dart type of shape element for the left side of the basic shape



    4
    Call-up the Duplicar context menu of the shape element.

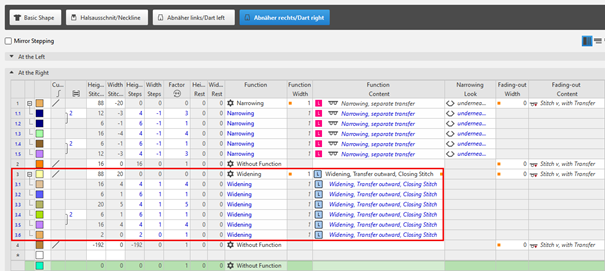

: The doublicated shape element is linked to the right side of the basic shape leading to the line table Direita.

Pences type of shape element for the right side of the basic shape

Link and position the Pences shape elements:

  1. A basic shape is created with the shape elements for the left and right Pences.
    1
    Select the right Pences shape element
  1. The line with the anchor appears.
    2. 2
    Take the desired anchor at the cursor by LMB.
    3
    Move the cursor to another shape line point with the LMB pressed.
    4
    Release the left mouse button.
  2. The shape element is linked to this shape line point.
    3. 5
    Open the input window by double-click on the selected shape element.
    - or -
    Open the input window by double-click on the coordinate display.
    6
    Change the coordinates of Distância X: and / or Distância Y: if necessary.
  1. The shape element is correctly linked and is at the correct position.
    7
    Continue with the second Pences shape element.
