Yarn Carrier Allocation

On the left, middle or right position of the magazine appear the yarn carriers that have not been allocated to a yarn carrier track.
They can be allocated manually or automatically.

• Drag the yarn carriers found in the magazine by Arrastar e Largar manually to the desired yarn carrier track.
• Drag the yarn carriers to any position in the magazine to specify a corresponding position of the yarn carrier track.
• Ocupar pistas
  Allocates the yarn carriers from the magazine automatically to the yarn carrier tracks of the corresponding side.
  Example:

• Rails 1, 2 and 8
  From the technique preset and in this pattern inserted yarn carriers
• On the rails 3, 4 and 5
  Yarn carrier of the pattern

• Exibir cores técnicas não utilizadas
• Yarn carriers that might have a technique preallocation but are not inserted into this pattern.
• In the example above:
  Yarn carrier 6 and 7
• Using the check box on the right and left beside the number of the yarn carrier track, you can lock the corresponding side on the rail for the automatic allocation.

By Arrastar e Largar in the Yarn Carrier Allocation.

• You can move the yarn carriers to a different free position using Arrastar e Largar.
• You can combine yarn carriers by drawing them with Arrastar e Largar on top of each other.
  Using Arrastar e Largar to a free position or to the magazine, allows to separate grouped yarn carriers.
  This also applies to technical yarns. To move technical yarns you have to click into the identification box beside the yarn carrier.

• You can exchange yarn carriers by drawing them on top of each other with pressed MSCHIFT key using Arrastar e Largar.

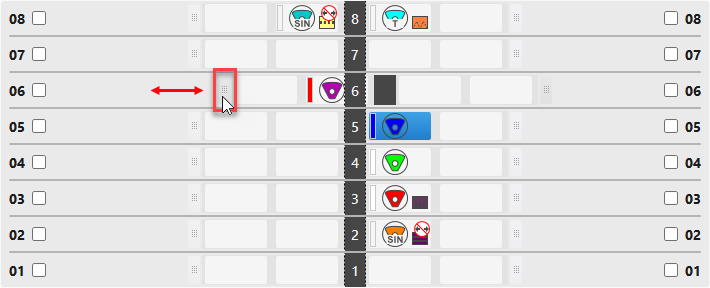

• If clamping is disabled or not available at the machine, you can move the yarn carrier parking positions to the right or left. Therefore, click on one of the buttons at the right or left next to the parking positions and move the complete track.

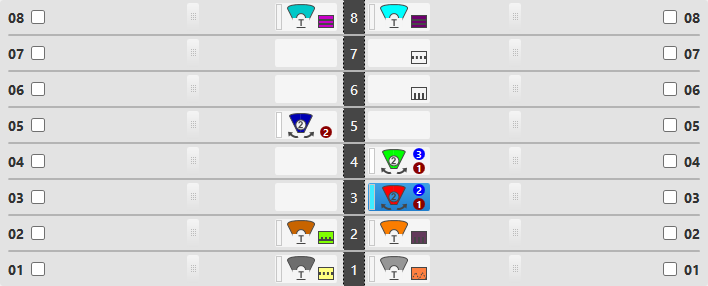

Symbolism of the yarn carrier view on the yarn carrier rail:

• The color in the bar on the left corresponds to the yarn color in the pattern (light blue).
• Color and presentation of the yarn carrier correspond to the yarn carrier color (red) and the yarn carrier type (Intarsia 2).
• The digit in the right bottom of the image (1 brown) marks the feed wheel grouping
• The digit in the right top in the image (2 blue) marks the assigned measuring wheel of the yarn length control.
• If a yarn carrier is clicked on, then the view will be highlighted in blue and the properties of the yarn carrier are displayed in window to the right.

• Yarn carriers with technique colors are marked in the bottom right with a rectangle.
• Rib thread
• Draw thread
• Fio de pente
• Fio elástico
• Fio de proteção
