Settings for Yarn Carriers

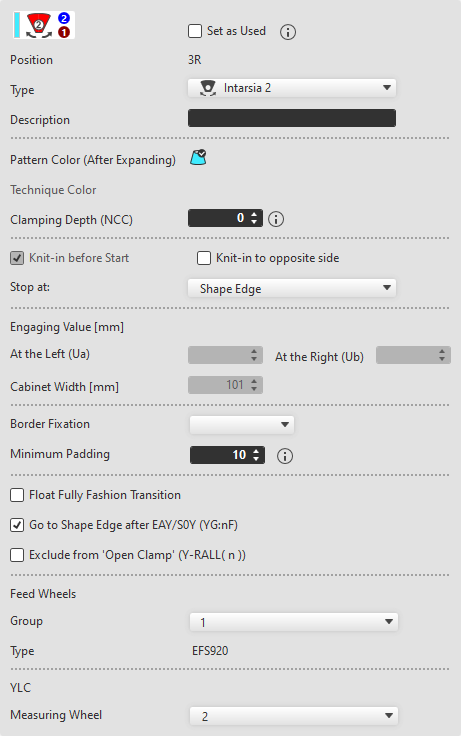

If a yarn carrier is clicked on, then the corresponding setting options appears in the window to the right.

Marcar como utilizado	The yarn carrier is added even though it is not used in the pattern (for example for sequences). The yarn carrier appears in the yarn carrier home position (YG) in Sintral. The yarn carrier can be used for Sintral functions.
Posição	Shows the starting position of the corresponding yarn carrier.
Tipo	Select yarn carrier type Only yarn carrier types of the selected machine are available.
	Automático	The yarn carrier type is determined by the technical processing.
	Normal	Normal yarn carrier
	Intarsia 1	Intarsia Yarn Carrier Type 1
	Intarsia 2	Intarsia Yarn Carrier Type 2
	Arco duplo	Plating with a yarn carrier with two bows for plating yarn and basic yarn with adjustable distance.
	Ilhó duplo	Common plating yarn carrier for plating yarn and basic yarn with fixed distance.
	Largura da hendedura variável +/- (Ua/b)	Plating with two yarn carriers Following basic yarn in the plating yarn carrier type U+/- with Ua/b > 29 mm. Leading plating yarn in the normal yarn carrier.
	Normal 2 +/- (Ua/b)	Use normal yarn carriers type2. For the combination with intarsia yarn carrier type 1 or type 2. You can change the yarn carrier engaging width for plating. Example: Following basic yarn with Ua/b > 29 mm
	Fio de trama Qw	Weft Yarn Carrier W Machine - Weft Yarn Carrier Qw
	Weft Yarn Qt1	Weft yarn carrier with a driving width of 141mm. W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3 The driving width can be modified in the same dialog box further down.
	Weft Yarn Qt2	Weft yarn carrier with a driving width of 161mm. W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3 The driving width can be modified in the same dialog box further down.
	Weft Yarn Qt3	Weft yarn carrier with a driving width of 180mm. W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3 The driving width can be modified in the same dialog box further down.
	Autárquico	Yarn carrier of the ADF machines
Descrição	Enter the description for the selected yarn carrier.
Cor de amostra (após expandir)	Shows the pattern color of the selected yarn carrier.
Cor técnica	Shows the assigned technique color.
Profun. pinç. (NCC)	Depending on the yarn a correction value (NCC) for sinking the clamping needle may be useful in order to clamp properly. Enter the correction value here. Command: NCC=n (n= -10 to 10)
Entrar tecendo antes de começo	The yarn carrier is knit-in using the Inserir Entrar tecendo antes de começo function. The setting is applied from the Pente, pinças tab of the Configuração dialog box. The setting can only be modified, if you selected the Livremente definível (em ocupação dos guia-fios) option in the Pente, pinças tab of the Configuração dialog box. Comb, Clamping tab
Entrar tecendo no lado oposto	The yarn carrier is knit-in on the opposite side of its home position. The setting is only available, if Detect Knitting-in to Opposite Side Automatically is disabled in the Outras configurações tab of the Configuração dialog box. Further Settings tab Recommendation: Useful for machines with single-sided clamping and cutting or if a yarn carrier in the pattern knits-in on one side and knits-out on the other.
Parar em:	Stop the yarn carriers at the Canto de forma or Ourela SEN.
Valor de ação de guia-fios [mm]	When selecting the Largura da hendedura variável +/- (Ua/b) or Normal 2 +/- (Ua/b) yarn carrier type, the engaging width for left and right can be entered.
Á esquerda (Ua)	Engaging width for the carriage direction to the left
Á direita (Ub)	Engaging width for the carriage direction to the right
Largura de caixa [mm]	Shows the cabinet width of the selected yarn carrier type. The driving width is displayed for the weft yarn carriers Qw, Qt1, Qt2 and Qt3. W Machine - Weft Yarn Carrier Qw W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3
Driving Width [mm]	Distância de arrasto do guia-fios na introdução do fio de trama em mm The driving width can be modified for the Fio de trama Qw yarn carrier type. W Machine - Weft Yarn Carrier Qw W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3
Fixação da ourela	Select the module for the border fixation. For machines with belt take-down, the border fixation is enabled by default.
Distância mínima	Enter the quantity of rows after which the upright yarn is to be fixed. Value range: 1-999 With a high gauge the value should be low, with a fine gauge correspondingly higher.
Flutuar transição de Fully Fashion	At the fabric end, the yarn carrier is moved to the home position by float. At the fabric end, the yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.
Para o canto de forma depois de EAY/S0Y (YG:nF)	The yarn carrier will be positioned at the #L and #R counters and follows the shape, with an activated check box.
Excetuar de 'Abrir pinça' (Y-RALL( n ))	The yarn carrier remains clamped despite Y-RALL, with an activated check box. Activate in case that threads of individual yarn carriers wind around the take-down roller. You control the releasing of the clamp with the entry of Abrir pinça depois de n fileiras: in the Abrir pinça column of the Parâmetros de cor table. Color Parameters Yarn Carrier Presettings Not for BMS!
Exclude from Clamping (YG:n!;)	With the enabled check box, the yarn carrier will not be clamped but moved to the '!' position. Only ADF!
Alimentadores	If working with feed wheels is activated in the machine attributes, you can assign a group to the selected yarn carrier here. The creating and managing of the groups takes place in the Agrupar alimentadores tab Group Feed Wheels Tab
Grupo	Assign a feed wheel group to the yarn carrier. All groups previously created in the Agrupar alimentadores tab are available for selection.
Tipo	Shows the feed wheel type of the selected group. You set the feed wheel type in the Agrupar alimentadores tab.
YLC	With Controle do comprimento do fio enabled in Configuração -> Outras configurações, you can assign the corresponding measuring wheel to each yarn carrier. Further Settings tab
Roda de medição	Select the corresponding measuring wheel for the yarn carrier.
