Change or edit the default settings for racking corrections of the knitting element
: With STOLL knitting elements, the racking correction index (VCI) is used by default.
Change settings for a racking correction in a local knitting element:
:
All the knitting elements drawn in the
Amostra de desenho which are taken from the Knit Explorer are saved as local knitting elements in the Projecto de amostra.
In the
Correção do variador (VCI) control column of local knitting elements, you can change the the specified racking correction of the transfer rows.
- The Correção do variador (VCI) control column is displayed in the Amostra de desenho.: But without entries, as no transfer rows are displayed in the Amostra de desenho.
- 1
- Open the existing Projecto de amostra and save it with a new name.
Menu Arquivo / Salvar como
- or -
Create new Projecto de amostra with one individual pattern and draw-in structure. - 2
- Open local knitting element with double-click.
- 3
- Open the Correção do variador (VCI) control column in the knitting element editor if necessary.
- 4
- Position the cursor on the Correção do variador (VCI) control column.
- 5
- Open the context menu.
- 6
- Select Exibir tabela.

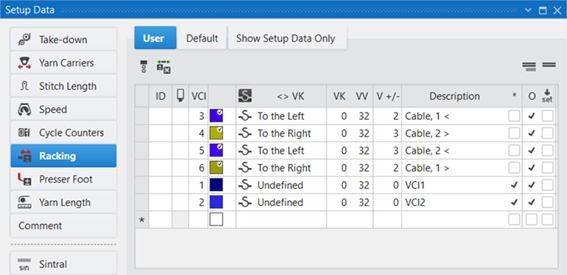

- The Dados de setup tool window / Variador section / Usuário tab appears with the racking correction indices (VCI).
Display of the following entries:
- All the racking correction indices (VCI) used in the Amostra de desenho are displayed and are marked with the
symbol.: In the knitting elements, the structures for knitting on all needles are managed and also for 1x1 technique. This means, that there is entered a racking correction value for all racking courses in the knitting element. - The entries marked as favorites in the Dados de setup tool window / Variador section / Usuário tab are displayed.
- 7
- Select the used and desired racking correction.
- 8
- Change presettings.
- 9
- If necessary, add new entries to the table, enter in the knitting element and adjust presets.
: The racking correction indices (VCI) shown in the context menu of the control column correspond to the table in the Dados de setup tool window / Variador section / Usuário tab.
