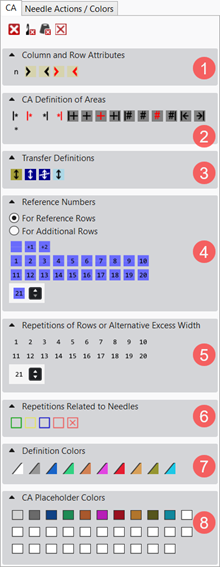

Tools in the Color Arrangement Editor

1

Sütun ve sıra öznitelikleri

Referans sütunu

Marking of the column for the reference numbers

Dikey tekrar için sütun

For creating repetitions in the height (cycles)

Sol kesim alanı sütunu

Fabric selvedge in the right of the fabric piece center

: Corresponds to #RM counter.

Sağ kesim alanı sütunu

Fabric selvedge in the fabric piece center left

: Corresponds to #LM counter.

Sol örme paneli sütunu

Left outer edge of a fabric piece.

: Corresponds to #L counter.

Sağ örme paneli sütunu

Right outer edge of a fabric piece.

: Corresponds to #R counter.

2

RA alan tanımı

Sol desen boşluğundan itibaren tekrarlama

Repeat the selected column area within the color relative to the first pattern column.

Sağa doğru tekrarlama

Repeat the selected column area starting from the left color field edge.

Sağ desen boşluğundan itibaren tekrarlama

Repeat the selected column area within the color relative to the last pattern column.

Sola doğru tekrarlama

Repeat the selected column area starting from the right color field edge.

Artı genişlik, üzerine yazmalı, sol desen kenarından itibaren tekrar ile

Enter a overwriting additional column on the left relative to the first pattern column of a color area.

Artı genişlik, üzerine yazmalı

Enter an overwriting additional column on the left and / or right of a color area.

Fazla genişlik

Do not enter an overwriting additional column on the left and / or right of a color area.

Artı genişlik, üzerine yazmalı, sağ desen kenarından itibaren tekrar ile

Enter a overwriting additional column on the right relative to the last pattern column of a color area.

Effect:
The color area will be widened up to shape edge at max.

Example: Intarsia Binding

Şekil kenarında artı genişlik, üzerine yazmalı, sol desen kenarından itibaren tekrar ile

Enter a overwriting additional column on the left relative to the first pattern column of a color area at the shape edge.

Şekil kenarında artı genişlik, üzerine yazmalı

Enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Şekil kenarında fazla genişlik

Do not enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Şekil kenarında artı genişlik, üzerine yazmalı, sağ desen kenarından itibaren tekrar ile

Enter a overwriting additional column on the right relative to the last pattern column of a color area at the shape edge.

Effect:
The color area will be widened by the indicated column number beyond the shape edge.
Here, Outside shape is set to Within shape.

: Shape edges will not be moved, attributes will be widened.

Sol örgü kenarı

Fading-out at the left fabric selvedge by the drawn-in width .

Sağ örgü kenarı

Fading-out at the right fabric selvedge by the drawn-in width.

Sıra tekrarı

For defining cycles in the column

: If there are to be defined several cycles in the CA, the repeating of rows can be marked visually also with defining colors. For neighboring cycles a defining color is mandatory as it defines the start and the end of the cycle.

Arama sırasındaki şeklin dışında

For defining specifications in the needle bed in the area at the left of the #L counter and in the area at the right of the #R counter, also for specifying outside shape.

• Comb Thread Example

3

Aktarma tanımları

Şekil-aktarma ön verileri

Specify the pattern rows for transferring the narrowings and widenings

Yapısal aktarma için ön veriler

Specify the pattern rows for transferring the structures.
preferred or delayed

Do not allow structure transferring

Specify the pattern row in which the transferring of the structure is not allowed

Otomatik aktarma için ön veriler

Specify the pattern rows for auto transferring

4

Referans numaraları

Referans sıraları için

Referans sırası numarasını koru

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Referans sırası numarasını 1 artır

Edited reference row number will be increased by 1 for further editing.

: In the first row of the CA, the '+' symbol will not be executed, i.e. it corresponds to an entry of

Referans sırası numarasını 2 artır

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Reference Row Number from 1 to 20

Selection of the reference row numbers for numbering the reference rows in the design pattern

Selection of further reference row numbers greater than 20

Ek sıralar için

Retain the number of additional row

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Increase the number of additional row by 1

Edited reference row number will be increased by 1 for further editing.

Increase the number of additional row by 2

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Number of additional row from 1 to 20

Selection of the additional row number for numbering the additional rows in the Color Arrangement

Selection of further reference additional row numbers greater than 20

5

Sıra tekrarı / alternatif fazla genişlik

to

Repeating of rows or excess width 1 to 20

Numbers for defining

• Repetition factor with repeating of rows
• Definition of the alternative excess width

Repeating of rows or excess width 21 and higher

6

İğne ile ilgili tekrarlar

Alan başlangıcı

Select areas and define them according to the type of knitting element.

• Binding-off by CA
• Repetitions in a module

Birinci tekrar

Sonraki tekrar

Alan sil

Delete the marked areas

7

Tanımlama renkleri

to

For visual marking of

• Connecting points
• Repeating of rows (cycles)
• Jacquard colors in the Jacquard module type of knitting element
