Edit and modify inserted Jacquards

I. Edit the inserted Jacquards:

  1. In the pattern there are areas with inserted Jacquard modules.
    1
    In the Başlat ribbon under Araç penceresi, open the Jakarlar tool window.
    - or -
    Open the context menu in the Jacquard area in the pattern and click . und Jakarları aç... .

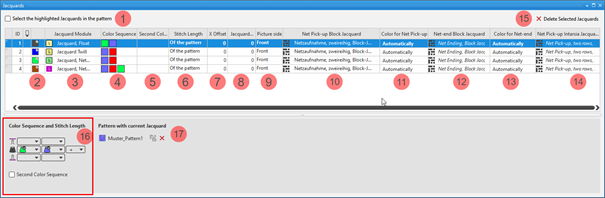

  1. The Jakarlar tool window is opened.

1

Seçili tablo girdilerini desende seç

The Jacquards selected in the table are not displayed as selection in the pattern.
: Selection via the first column in the table.

The Jacquards selected in the table are displayed as selection in the pattern.

ID

Running numbering of Jacquard areas

2

For drawing a Jacquard module in the pattern

  • The Jacquard area has the same colors as the selected Jacquard:
    No other entry necessary in the table
  • The Jacquard area has other colors than the selected Jacquard:
    Another entry necessary in the table

Index Color: Application in the search area of a Color Arrangement

: If there exist several patterns in the pattern project, the color is marked according to the active document (pattern) with (Kullanılıyor).

3

Display of the Jacquard module in use

  • Name of the Jacquard module with the 'L' identifier for local
  • Allocated knitting element color under Özellikler

4

Display for the color sequence for the first and second pattern row if İkinci renk takip sırası is not active.

5

Display for the color sequence for the second pattern row if İkinci renk takip sırası is active.

6

Specification of the stitch length which is to be used in the pattern.

  • Of the pattern
  • Of the module
  • User Defined

7

Value in needles for the horizontal offset of a Jacquard module

8

Value in needles, regarding how much the Jacquard back side is to be narrower compared to the picture side.

9

Picture at the front / rear / front-rear

10

Display of the knitting elements in use for the net pick-up with continuous Jacquards

11

Specification of the color (yarn carrier) which is used for the net pick-up knitting element

12

Display of the knitting elements in use for the net ending with continuous Jacquards

13

Specification of the color (yarn carrier) which is used for the net ending knitting element

14

Display of the knitting elements in use for the net pick-up with intarsia with Jacquard back

15

Seçili jakarları sil

The selected Jacquard is deleted in all the pattern where it is in use.

16

Color Sequence and Stitch Length

Display or edit box for the stitch length per color / system for rear needle bed

: Depends on the selection under İlmek uzunluğu ((6)).

Display of the color sequence from the left for the Jacquard area selected in the table

Display or edit box for the stitch length per color / system for front needle bed

: Depends on the selection under İlmek uzunluğu ((6)).

Color Sequence of Second Pattern Row

Default setting
The color sequence is the same as in the first pattern row

Definition of the color sequence for the second pattern row is possible.

:
: The input panel for the color sequence for the second pattern row is displayed.

17

List of the patterns, where the Jacquard selected in the table is in use.

: Attention :
By default, the Jacquard areas with the same Jacquard module and the exact same colors will be grouped.

Ungroup the grouped Jacquard areas.

: Necessary, if different settings must be made for the Jacquard areas.

The Jacquard module inserted in the pattern will be removed from the area in the pattern.

Result:
In the pattern area, no Jacquard module is attached anymore.

    2
    Select the Jacquard to be changed in the table.
    3
    Make the desired changes in the tool window.
    4
    Close the tool window with X.
  1. The changes will be applied to the pattern.
