Shape Element Properties and Functions in Context Menu of Shape Elements

Procedure:

    1
    Select the desired shape element.
    2
    Call-up the context menu of the shape element.
    3
    Call up the desired menu item.
  1. The selected function will be executed.
  2. The Kesim elemanı özelliklericontext menu opens the Kesim elemanı özellikleri tool window.

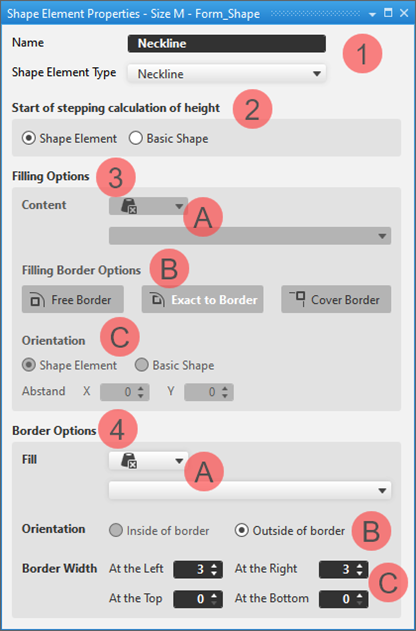

Shape Element Properties

1

Ad

The name of the shape element is as desired

Kalıp elemanı tipi

Characteristics of the shape element for processing it within the shape:

  • Yaka açıklığı
    Outside Shape
  • Doldurulmuş yaka açıklığı
    Within shape with allocation of narrowing modules
  • Tiktak
    Within shape for not knitting with the symbol
  • Delik
    Outside Shape
  • Pens
    Within shape with symbols for processing with narrowing / widening modules
  • Şekil dahilinde
    Allocation of knitting elements, pattern elements or an image

: The shape element type can be changed via the picklist.

2

Yükseklik basamaklandırma hesaplaması başlangıcı

Kesim elemanı

The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the shape element.

Ana Kesim

The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the basic shape (baseline).

3

Dolgu seçenekleri

A

Kapsam

Allocation of a filling color and / or of a knitting element

B

Kenar doldurma seçenekleri

  • Kenar boş
  • Hassas Kenar
  • Kenarı ört

C

Hizalama

Kesim elemanı

In the shape element, starting at the reference point of the shape element (bottom left corner of the shape element) a grid is structured with the size of the knitting element.
Then, the knitting element is filled with the preset for border filling options.

Ana Kesim

In the shape element, starting at the reference point of the basic shape (bottom left corner of the basic shape) a grid is structured with the size of the knitting element.
Then, the knitting element is filled with the preset for border filling options.

Mesafe X:/ Y

Horizontal and / or vertical shifting of the reference point in the shape element or in the basic shape.

4

Kenar seçenekleri

A

Kapsam

Dolgu

Allocation of a filling color and / or of a needle action

: Allocation of a knitting element larger than 1x1 is not possible.

B

Hizalama

Entry of a border inward or outward according to the shape element type

C

Kenar genişliği

Preset of the border width in pixel for the four shape element edges
