Create and position knitting areas on basic shape

Open the Örgü alanları tool window:

A basic shape is created as lined shape.
Lined shape appears in the xx document window.

1: Click the Örgü alanları button under Parametreler in the Kesim düzenleme ribbon.

The Örgü alanları tool window appears.


1	Colors	Display color of the knitting range in the lined shape
2	Açıklama	Definition of a knitting range
3	İplik rengi	Allocation of: İplik rengi / Depo rengi / Mekik rengi: / Vanize renkleri / Çok sistem renkleri
4	Dolgu elemanı	Selection of a knitting element / needle action / structure / pattern element to fill the knitting range
5	Adet	Height of the knitting range by stitch rows
6	İlmekler	Display of the total height by stitches
7	cm	Display of the total height by cm : Calculated by the stitch density in use from the İlmek yoğunluğu table
8		Assignment of a stitch density from the stitch density tool window
9	Renk Aranjmanı	Assignment of Color Arrangements
10		Assignment of a stitch length for the front needle bed
		Assignation of a stitch length for the rear needle bed
		Assignment of a take-down value
		Assignment of a auxiliary take-down value
		Assignment of a machine speed
11	List of the shapes (fabric pieces), where the selected knitting range is in use. : Knitting ranges can be removed from the corresponding pattern by the button.

Creating Knitting Ranges:

Lined shape is created.
Lined shape appears in the xx document window.
The Örgü alanları tool window is open.

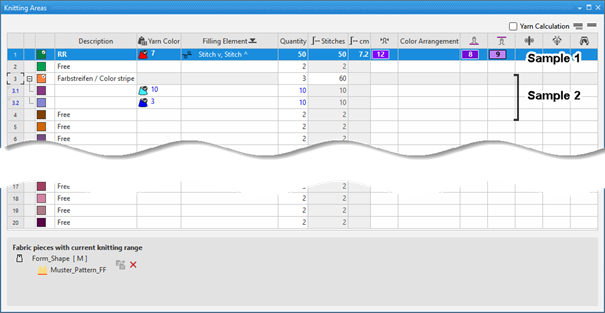

1: Make the desired definitions in the desired, undefined (free) table row:

Example 1:

Knitting Range DJ
By another yarn color, structure, stitch density and stitch lengths

Example 2:

Knitting range of color stripes
For color stripes of two yarn colors
: You have to create several sub-rows per main row corresponding to the knitting ranges with different specifications.

Creating sub-rows for an existing main row:

1: Select the desired main row.

2: Open the context menu with RMB and select Alt satır ekle.

3: Make the desired specifications in the sub-row.

4: Create more sub-rows if necessary.

Enter the created knitting ranges into the shape and position it:

Shape is created as lined shape.
The knitting ranges are available in the Örgü alanları tool window.

1: Open the lined shape in the xx document window.

2: Select the desired shape line point by the LMB to which you want to assign the knitting range.

3: Call up the Örgü alanı ata context menu.

List of the knitting ranges appears to select one.
Multiple selection is possible.

4: Select the desired knitting range.

The knitting range appears in the assigned color at the the shape line point of the lined shape.

	Enable the view of the knitting ranges in the xx document window
	Disable the view of the knitting ranges in the xx document window

5: Position the knitting range.


1	Selecting knitting ranges to replace the inserted knitting range.
2	Specify the İç boşluk in İlmekler in relation to the shape line point
3	Örgü alanını aşağı doğru yerleştir
		Knitting range will be inserted above the shape line point
		Knitting range will be inserted below the shape line point
