Assign the Jacquard Modules to the Jacquard Areas

I. Assign the Jacquard Module:

1: Create a row selection via the control column.

2: Positioning the cursor in the pattern area.

3: Call-up the 选择 / 创建提花... context menu.

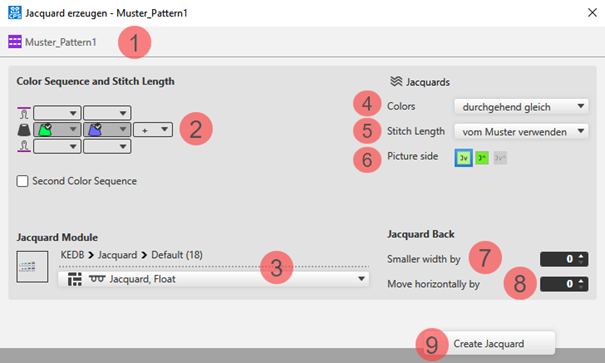

The 创建提花 [新花型] dialog box appears.


1	Display of the active document window 设计花型, for which the dialog box is valid.
2	颜色顺序和线圈长度
		Display or edit box for the stitch length per color / rear system : Depends on the selection under 线圈长度 ((5)).
		Display of the used colors in the selection in the color sequence from the left
		Display or edit box for the stitch length per color / front system : Depends on the selection under 线圈长度 ((5)).
	第二颜色顺序
			Default setting The color sequence is the same as in the first pattern row.
			Definition of the color sequence for the second pattern row is possible. : Input panel for the color sequence of the second pattern row
3	提花模块
		Displays the selected Jacquard module. : Position the cursor in the display, to use the LMB to open the 编织资源管理器.
		Display of the path of the selected directory in the 编织资源管理器
		Selection list for selecting the desired Jacquard module in the specified directory
提花
4	颜色		Selection list for the knitting sequence of the colors 连续每行最少颜色数每行和每列最少数量（跳纱）
5	线圈长度		Selection list for the stitch length 花型的模块使用用户自定义 Make presettings at and / or .
6	提花图		Selecting the desired face of picture of Jacquard Jv: 图案正面 J^: 图案背面 Jv^: 图案前面和背面 : Not with all Jacquard modules available
提花背面
7	减小宽度		Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture
8	横向移动		Specification by needles for shifting the Jacquard horizontally
9	创建提花		The presets made in the dialog box will be applied to the pattern.

4: Make the desired presets in the 创建提花 [新花型] dialog box.

5: Apply the presets to the pattern with the 创建提花 button.

6: Continue:
Create the next selection for a new Jacquard area.
- or -
Exit working in the dialog box by 关闭.

The different Jacquards are displayed with different symbols in the pattern.

II. Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each pattern in the 花型项目 for Block Jacquard.

Possibilities for changing the module allocation:

In 配置 -> 提花 tab -> Block-Jacquard section
: Changes will apply to all patterns of the 花型项目 .
Select ribbon, 起头 -> 工具窗口 -> 提花 tab.
: Individual change regarding the desired Jacquard area
Select the context menu -> 打开提花...
: Individual change regarding the desired Jacquard area
