Module Arrangement Editor

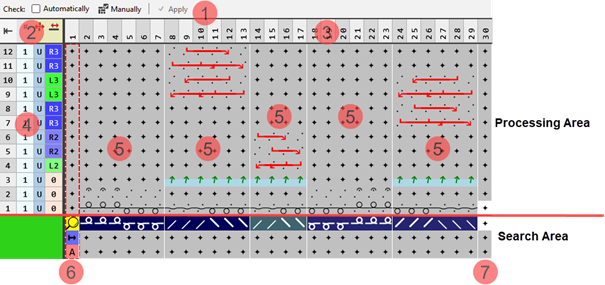

Designation of the rows and columns in the Module Arrangement Editor (MA)


1	检验	自动	The module structure of the Module Arrangement will not automatically be checked.
			The module structure of the Module Arrangement will permanently be checked.
		检验	If desired, the module structure of the Module Arrangement will be checked.
	: The user is responsible for the knitting procedure of the transferring, casting-off and post loop sinking actions.
	应用		Apply changes without closing the editor. : Button will get available after editing
2	Control Columns : All control columns are available
3	Column bar with numbering for selecting columns
4	Row bar with numbering for selecting rows Entry of control column data for transfer rows e.g.
Processing Area			Search Area
5	Reference columns or rows with the needle actions Transfer Cast-off Post loop sinking		6		Searching row with module colors of the structure modules in use module colors of the narrowing modules in use
					Definition of repetitions with Narrowing Widening
					Definition of attributes to insert a tile (search attributes) with Narrowing Widening
			7	Colors	Display of the pattern colors used within the area of the Module Arrangement 纱线颜色库颜色导纱器颜色
