Options for creating / editing a lined shape in the pattern project

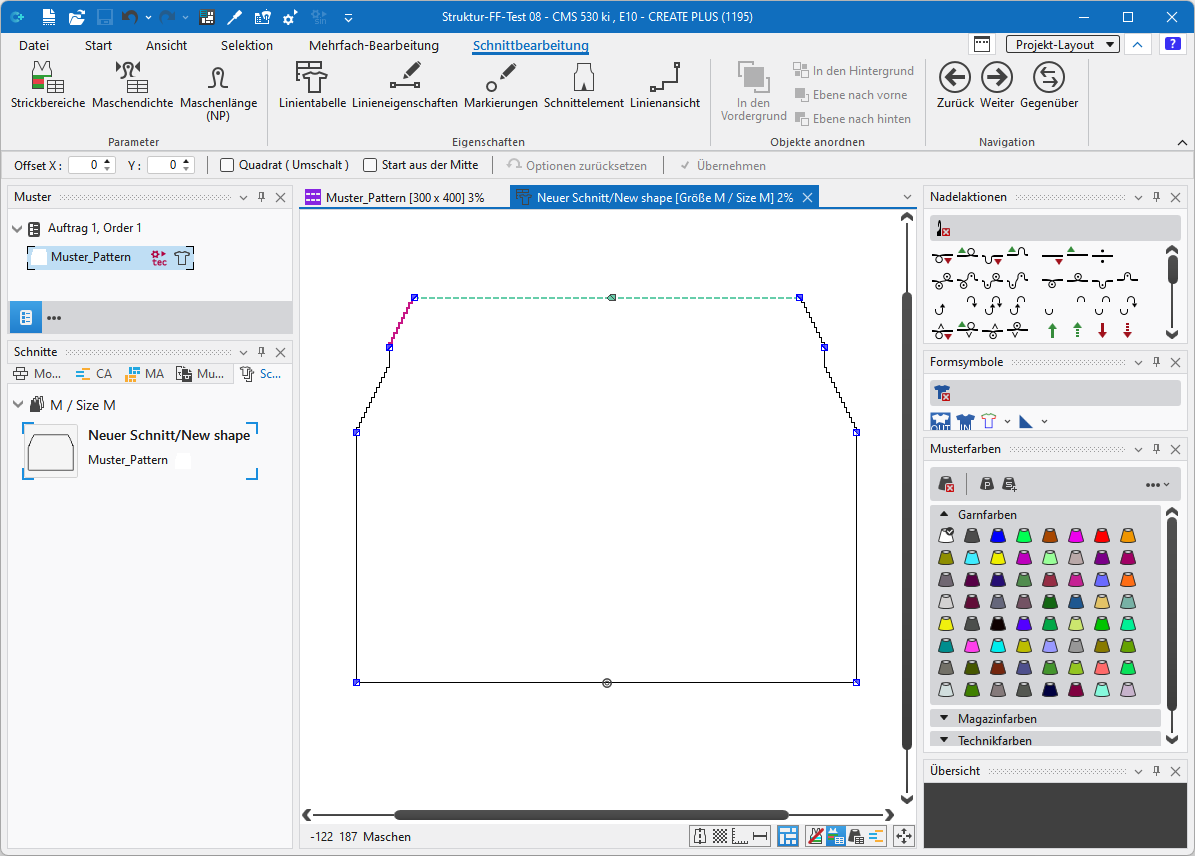

- In the
document window -

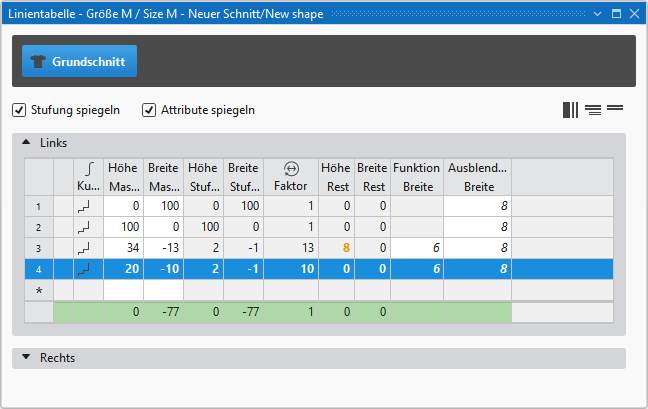

In the Line Table

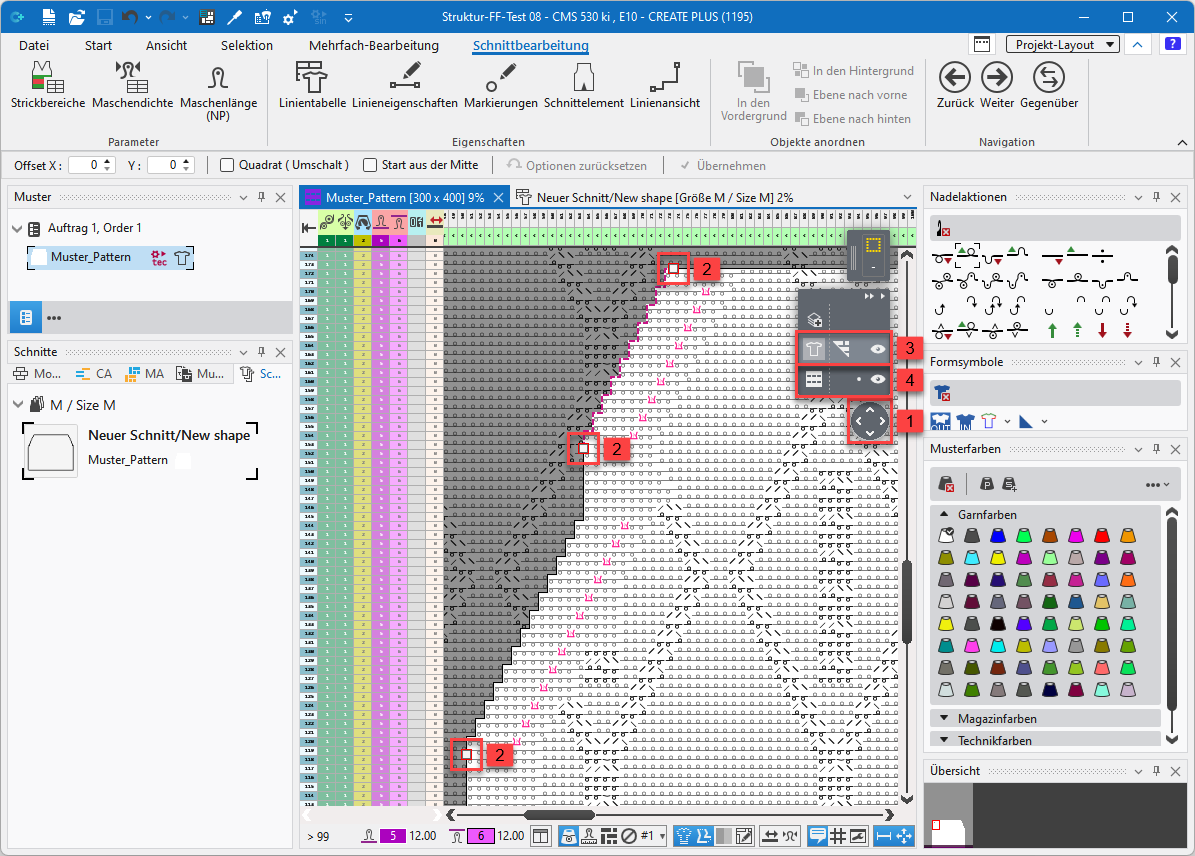

- In the
document window
: Only possible if the lined shape is positioned in the Design pattern.
|
| |||
|
1 |
Move Shape (Ctrl = by steps of ten) |
The shape positioned in the
| |
|
2 |
Shape Points |
You can move shape points with the cursor keys of the keyboard if 编辑线模型 (Y) is selected. | |
|
|
Layer control to toggle between 编辑基本层 or 编辑线模型 (Y) | ||
|
3 |
Upper Line |
|
Shape Layer: |
|
|
Toggle exceeding knitting elements | ||
|
4 |
Lower Line |
|
Design Layer:
|
For creating a lined shape, you can move freely between the three options whereby all the data is always updated.
