Creating the shape as lined shape in the pattern project

Open the 模型 tool window:

    1
    In the 起头 ribbon under 工具窗口, select the 模型 tool window.
  1. In the tool window, the existing shapes of the pattern project are displayed.
    2. 2
    Place the cursor in the tool window and open the context menu with the RMB.
    3
    Select 创建 M 码新模型... in the context menu.
  2. The 新线模型 dialog box will appear.
    3. 4
    Select the desired input format.
    5
    Confirm with the OK key.
  3. The new lined shape (basic shape) is graphically displayed in the 模型 tool window and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.

    6
    For creating a lined shape based on the displayed rectangle click the 属性 button in the ribbon under 线表.
    - or -
    Use the graphic displayed in the document window.
    7
    Create the desired shape lines.
    8
    Allocate the desired attributes to the shape lines.

: You may use the method you prefer as both views are always adjusted to each other.

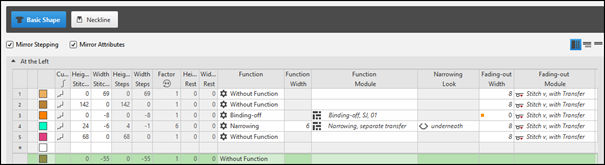

Basic Shape: Front - Binding-off at sleeve opening

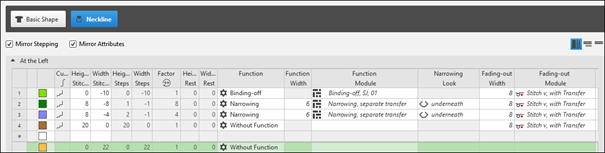

Shape Element: Neckline symmetric - Crew Neck

Adjusting the position of the 开始，V-领knitting element

    1
    Select the desired shape line.
    2
    Open the tool window via 线属性.
    3
    Change the position of the 开始，V-领 knitting element in the 标记 section under X and Y.
    4
    Make further changes if necessary.
  1. Place the knitting element at the left shape line (endpoint), as the binding-off shall be done from left to right.

1

Positioning of the knitting element V 领开始，线圈 v-vwith

  • X value: 0
  • Y value: 0
  • Orientation: Top left - upper left corner

: Due to the拷针 shape symbol, the knitting element is not visible in the pattern with pending shape.

2

Positioning of the knitting element V 领开始，线圈 v-vwith

  • X value: 0
  • Y value: -1
  • Orientation: Top Left

3

Positioning of the knitting element V 领开始，线圈 v-vwith

  • X value: -11
  • Y value: -1
  • Orientation: Top Left

Adjusting the position of the 开始，V-领knitting element

    1
    Click on the marking point at the start of the neck.

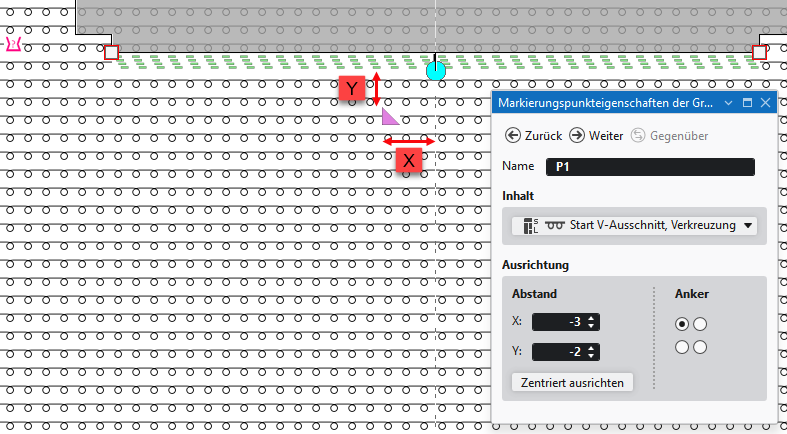

    In the 模型编辑 menu bar -> 属性 group open the 标记点属性 tool window.
    - or -
    Open the context menu on the marking point with RMB and click on 标记点属性.
    2
    Change the position of the 开始，V-领 knitting element in the 打印方向 section under X and Y.
    The values X and Y determine the distance from the marking point to the defined anchor in the knitting element.
    X: A positive value offsets the knitting element to the right and a negative value to the left.
    Y: A positive value offsets the knitting element upwards and a negative value downwards.

Place the knitting element at the left shape line (endpoint), as the binding-off shall be done from left to right.
