Creating the shape as lined shape in the pattern project

Open the 模型 tool window:

  1. Lined shape is created.
  2. Lined shape is saved as xx.slsf.
    1
    In the 起头 ribbon under 工具窗口, select the 模型 tool window.
  1. In the tool window, the existing shapes of the pattern project are displayed.
    2. 2
    Place the cursor in the tool window and open the context menu.
    3
    Select 导入模型... in the context menu.
  2. The 打开 dialog box appears.
    3. 4
    Enter the path and select the desired shape
    5
    Confirm the selection by the Open button.
  1. The saved lined shape (basic shape) is displayed in the 模型 tool window.
    2. 6

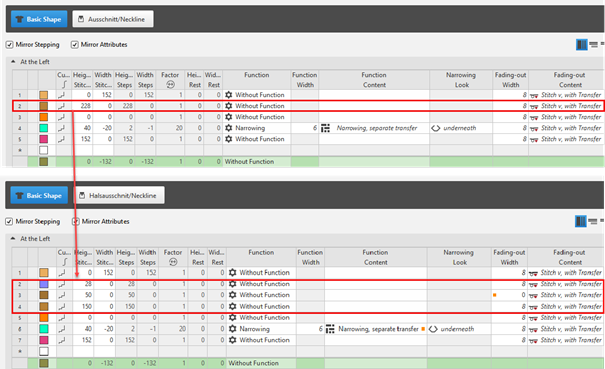

    Modify the existing shape line (2) if desired.

: Changing the line enables to position the knitting ranges even better.

    7
    Allocate the desired shape line attributes to the shape line.

Basic Shape: Modified front

Shape Element Type: Neckline symmetric
