Usage of Find and Replace

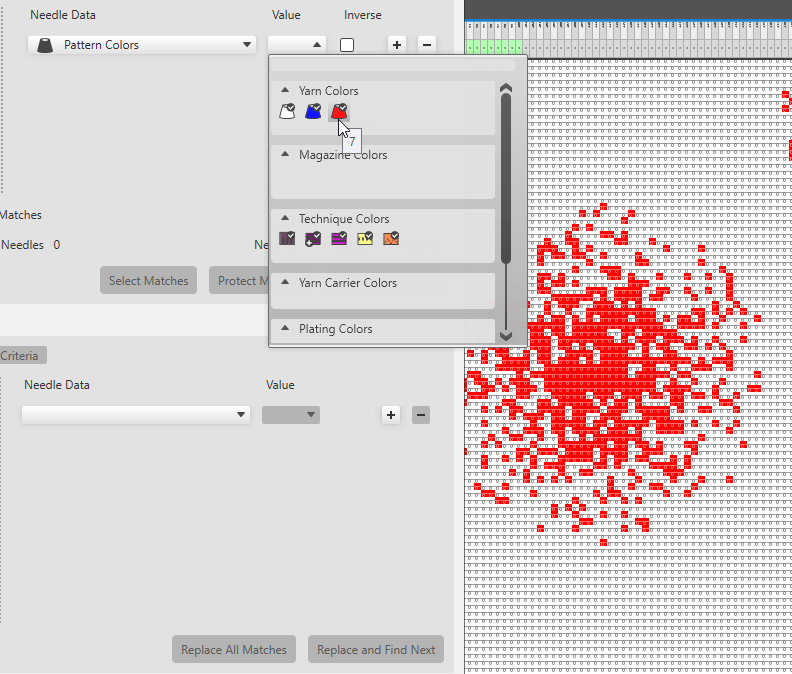

Attributes in the entire pattern 查找和替换	Open the 查找和替换 window. Switch off 选择. Select the 花型颜色 under 查找 / 织针数据 and the yarn color red under 值. Under 替换 / 交换 / 织针数据, select the pattern colors and under 值, select the yarn color blue. Click on 替换所有匹配项{1} to replace all the stitches found with the pattern color red by the color blue. Or click on 替换并查找下一个 to replace the found matches individually.
Structure modules in the selected area 查找和替换.	Open the 查找和替换 window. Switch on 选择. Under 查找 / 织针数据 select the 结构模块 and under that select any module that is to be searched for. Under 替换 / 交换 / 织针数据 select the structure module that is to be inserted. Click on 替换所有匹配项{1} to replace all the modules found in the selected area. Or click on 替换并查找下一个 to replace the found matches individually. All modules, even if they are only partially available in the selected area, are displayed as matches and replaced accordingly.
Control column data in the entire pattern 查找和替换.	Open the 查找和替换 window. Switch off . Under 查找 / 控制列数据 select the desired control column and the corresponding 值. (e.g. Front Stitch Length, value: NP5) Under 替换 / 交换 / 控制列数据, select the control column and the 值 that is to be entered. Click on 替换所有匹配项{1} to replace all the NP values found. Or click on 替换并查找下一个 to replace the found matches individually.
Search for, edit and replace a temporary pattern element in the entire pattern.	Open the 查找和替换 window. Select the area in the pattern that you want to insert as a temporary pattern element in the search criteria. Click on 从选择区域生成临时花型元素 under 搜素花型元素. The area selected in the pattern appears as search criterion. Click on 添加搜索条件 under 替换 / 交换 / 替换花型元素. The temporary pattern element of the search criteria appears as criterion for insert. Click on 编辑临时花型元素. The pattern element is opened. Make the desired changes and close it then. The modified pattern element appears in the criteria for insert and under 花型元素选择： appears: 编辑临时花型元素 Click on 替换所有匹配项{1} to replace all the pattern elements found. Or click on 替换并查找下一个 to replace the found matches individually.
