Status bar of the Jacquard Editor

Left and middle area of the status bar

Displays that refer to the cursor position.

Shows the coordinates of the cursor position.
If an area is selected, the coordinates of the startpoint and of the endpoint, and the size of the selected area are displayed.

Shows the Jacquard color at the cursor position.

Right area

Here you can make layout settings for the document window.

显示注释

显示网格

Opens the 选项 tool window

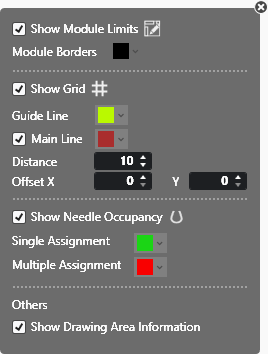

Tool Window 选项

Make the following settings here:

显示网格

Displays the grid.
Enter the configuration of the grid.

引导线

Select the color of the help lines.

主线

Display the main lines.

Select the color of the main line.

距离

Enter the distance of main lines between each other.

偏移
X
Y

Enter offset from which the main lines are used.

In the lower area of the status bar you have access to the Jacquard colors.

Select any color for drawing.
