Change or edit the default settings for racking corrections of the knitting element
: With STOLL knitting elements, the racking correction index (VCI) is used by default.
Change settings for a racking correction in a local knitting element:
:
All the knitting elements drawn in the
设计花型 which are taken from the 编织资源管理器 are saved as local knitting elements in the 花型项目.
In the
横移修正（VCI） control column of local knitting elements, you can change the the specified racking correction of the transfer rows.
- The 横移修正（VCI） control column is displayed in the 设计花型.: But without entries, as no transfer rows are displayed in the 设计花型.
- 1
- Open the existing 花型项目 and save it with a new name.
Menu 文件 / 另存为
- or -
Create new 花型项目 with one individual pattern and draw-in structure. - 2
- Open local knitting element with double-click.
- 3
- Open the 横移修正（VCI） control column in the knitting element editor if necessary.
- 4
- Position the cursor on the 横移修正（VCI） control column.
- 5
- Open the context menu.
- 6
- Select 显示表.

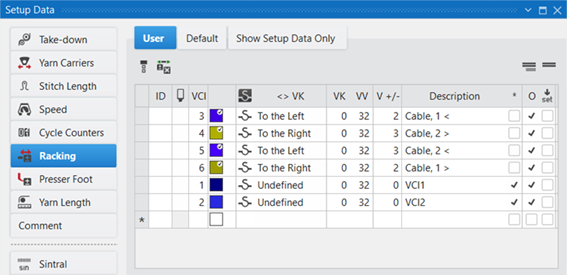

- The Setup 数据 tool window / 横移 section / 用户 tab appears with the racking correction indices (VCI).
Display of the following entries:
- All the racking correction indices (VCI) used in the 设计花型 are displayed and are marked with the
symbol.: In the knitting elements, the structures for knitting on all needles are managed and also for 1x1 technique. This means, that there is entered a racking correction value for all racking courses in the knitting element. - The entries marked as favorites in the Setup 数据 tool window / 横移 section / 用户 tab are displayed.
- 7
- Select the used and desired racking correction.
- 8
- Change presettings.
- 9
- If necessary, add new entries to the table, enter in the knitting element and adjust presets.
: The racking correction indices (VCI) shown in the context menu of the control column correspond to the table in the Setup 数据 tool window / 横移 section / 用户 tab.
